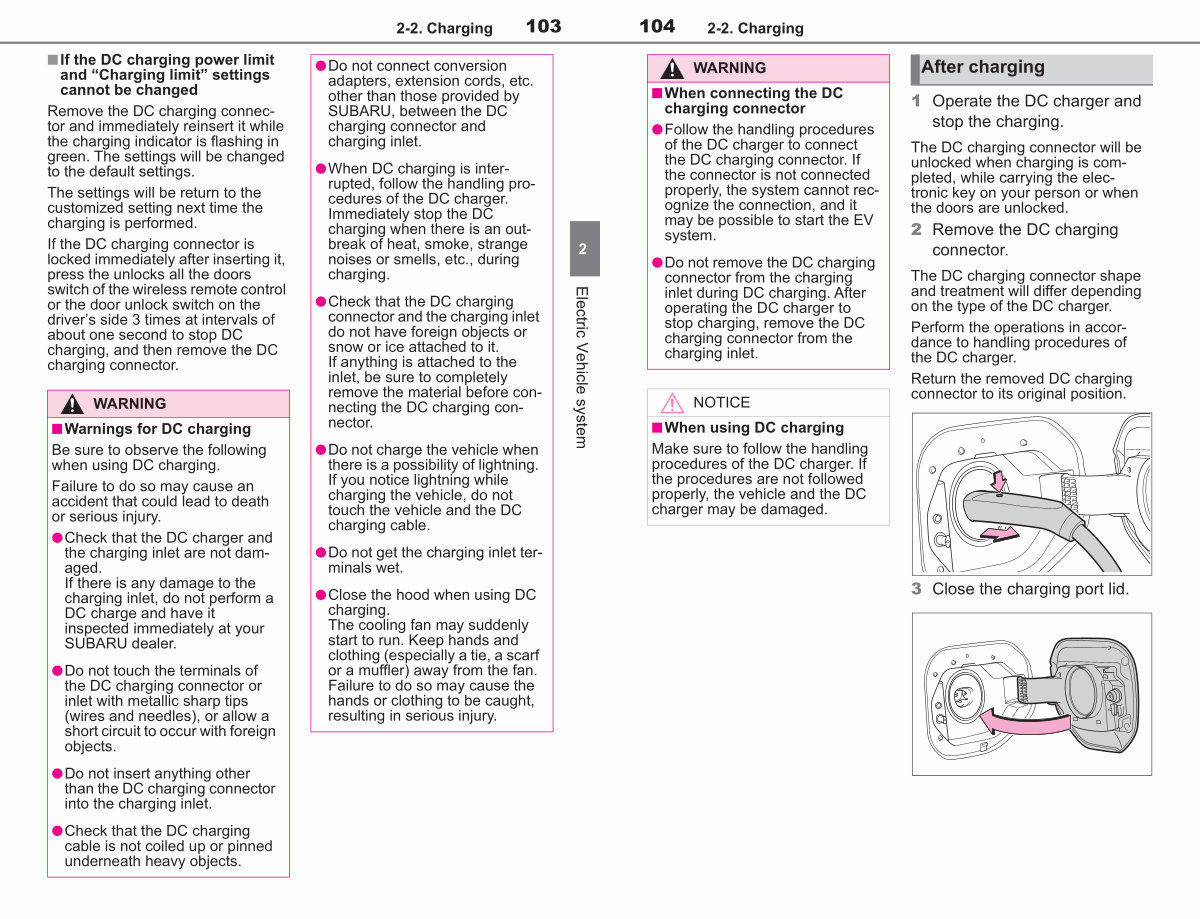

2-2. Charging
103
■ If the DC charging power limit and“ Charging limit” settings cannot be changed
Remove the DC charging connector and immediately reinsert it while the charging indicator is flashing in green. The settings will be changed to the default settings.
The settings will be return to the customized setting next time the
charging is performed.
If the DC charging connector is locked immediately after inserting it, press the unlocks all the doors switch of the wireless remote control
or the door unlock switch on the driver’ s side 3 times at intervals of about one second to stop DC
charging, and then remove the DC charging connector.
WARNING
■ Warnings for DC charging
Be sure to observe the following when using DC charging.
Failure to do so may cause an accident that could lead to death or serious injury.
●Check that the DC charger and the charging inlet are not damaged.
If there is any damage to the charging inlet, do not perform a DC charge and have it
inspected immediately at your SUBARU dealer.
●Do not touch the terminals of the DC charging connector or
inlet with metallic sharp tips( wires and needles), or allow a short circuit to occur with foreign objects.
●Do not insert anything other than the DC charging connector into the charging inlet.
●Check that the DC charging
cable is not coiled up or pinned underneath heavy objects.
●Do not connect conversion adapters, extension cords, etc. other than those provided by SUBARU, between the DC charging connector and charging inlet.
●When DC charging is interrupted, follow the handling procedures of the DC charger.
Immediately stop the DC charging when there is an outbreak of heat, smoke, strange
noises or smells, etc., during charging.
●Check that the DC charging connector and the charging inlet
do not have foreign objects or snow or ice attached to it. If anything is attached to the
inlet, be sure to completely remove the material before connecting the DC charging connector.
●Do not charge the vehicle when there is a possibility of lightning. If you notice lightning while
charging the vehicle, do not touch the vehicle and the DC charging cable.
●Do not get the charging inlet terminals wet.
●Close the hood when using DC charging. The cooling fan may suddenly
start to run. Keep hands and clothing( especially a tie, a scarf or a muffler) away from the fan.
Failure to do so may cause the hands or clothing to be caught, resulting in serious injury.
2
Electric Vehicle system
