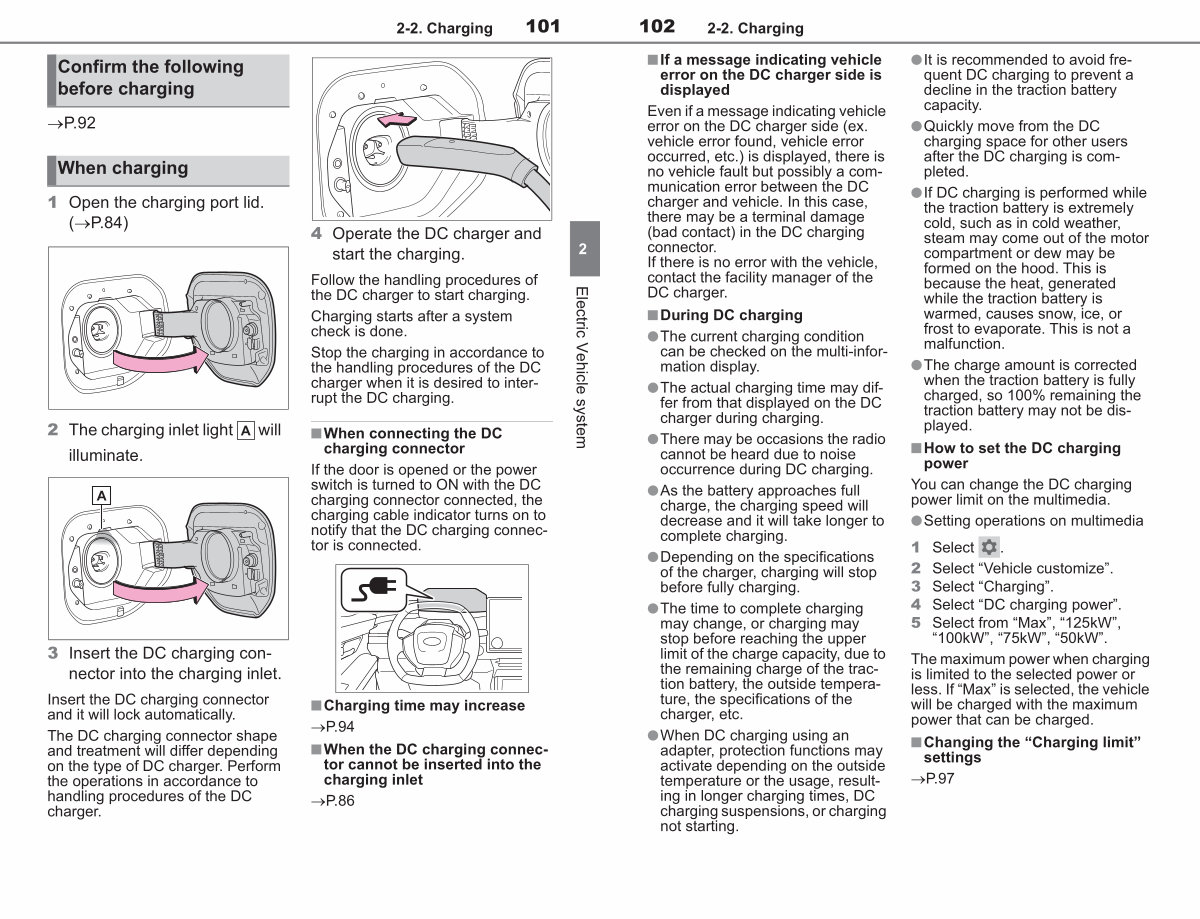

2-2. Charging
101
Confirm the following before charging
�P. 92
When charging
1 Open the charging port lid.( �P. 84)
2 The charging inlet light will illuminate.
4 Operate the DC charger and start the charging.
Follow the handling procedures of the DC charger to start charging.
Charging starts after a system check is done.
Stop the charging in accordance to the handling procedures of the DC
charger when it is desired to interrupt the DC charging.
■ When connecting the DC charging connector
If the door is opened or the power switch is turned to ON with the DC charging connector connected, the charging cable indicator turns on to notify that the DC charging connector is connected.
2
Electric Vehicle system
3 Insert the DC charging connector into the charging inlet.
Insert the DC charging connector and it will lock automatically.
The DC charging connector shape and treatment will differ depending on the type of DC charger. Perform the operations in accordance to handling procedures of the DC charger.
■ Charging time may increase �P. 94
■ When the DC charging connector cannot be inserted into the charging inlet
�P. 86
