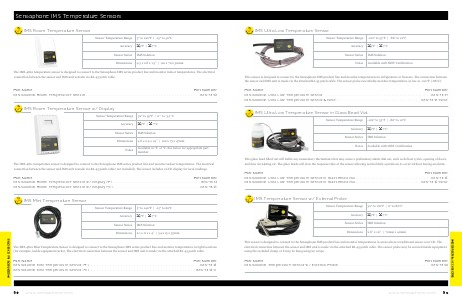

2014 Sensaphone Catalog May 2014 | Page 60

Sensaphone IMS Temperature Sensors IMS Room Temperature Sensor Sensor Temperature Range Accuracy Sensor Series Dimensions 5° to 122°F | -15° to 50°C ± 3°F | ±1.7°C IMS Solution 4.5 x 2.8 x 1.3” | 110 x 70 x 30mm The IMS-4810 temperature sensor is designed to connect to the Sensaphone IMS series product line and monitor indoor temperatures. The electrical connection between the sensor and IMS unit is made via RJ-45 patch cable. Part Name Part Number IMS Solution Room Temperature Sensor . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .IMS-4810 IMS Room Temperature Sensor w/ Display Sensor Temperature Range Accuracy Sensor Series Dimensions Notes 32° to 95°F | 0° to 35°C ± 3°F | ±1.7°C IMS Solution 4.8 x 2.9 x 1.9” | 120 x 73 x 47mm Available in °F, or °C. See below for appropriate part number The IMS-4811 temperature sensor is designed to connect to the Sensaphone IMS series product line and monitor indoor temperatures. The electrical connection between the sensor and IMS unit is made via RJ-45 patch cable (not included). The sensor includes a LCD display for local readings. Part Name Part Number IMS Solution Room Temperature Sensor w/ Display (°F) . . . . . . . . . . . . . . . . . . . .
