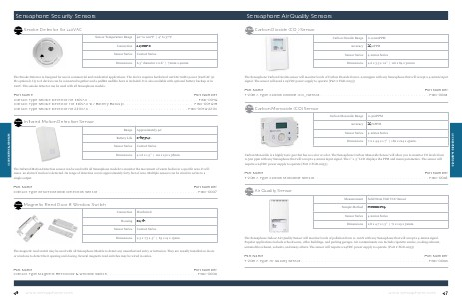

2014 Sensaphone Catalog May 2014 | Page 46

Sensaphone Security Sensors Contact Series Smoke Detector for 110VAC Sensor Temperature Range Connection Sensor Series Dimensions 40° to 100°F | 4° to 37°C Hardwired Contact Series 6.5” diameter x 2.6” | 72mm x 40mm The Smoke Detector is designed for use in commercial and residential applications. The device requires hardwired 120VAC 60Hz power (220VAC 50 Hz optional). Up to 6 devices can be connected together and a 90dBA audible horn is included. It is also available with optional battery backup or in 220V. This smoke detector can be used with all Sensaphone models. Part Name Part Number Contact Type Smoke Detector for 110VAC . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . FGD-0049 Contact Type Smoke Detector for 110VAC w/ Battery Backup . . . . . . . . . . . . . . . . . . . . . . . . . . FGD-0049-B Contact Type Smoke Detector for 220VAC . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . FGD-0049-220V Contact Series Infrared Motion Detection Sensor Accessories & Sensors Range Battery Life Sensor Series Dimensions Approximately 40’ 3 to 5 years Contact Series 4 x 6 x 1.5” | 101 x 152 x 38mm The Infrared Motion Detection sensor can be used with all Sensaphone models to monitor the movement of warm bodies in a specific area. It will cause an alarm if motion is detected. Its range of detection covers approximately forty feet of area. Multiple sensors can be wired in series to a single output. Part Name Part Number Contact Type Infrared Motion Detection Sensor . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . FGD-0007 Contact Series Magnetic Reed Door & Window Switch Connection Housing Sensor Series Dimensions Hardwired Plastic Contact Series 2.5 x .75 x .5” | 63 x 19 x 13mm The magnetic reed switch may be used with all Sensaphone Models to detect any unauthorized entry or intrusion. They are usually installed on doors or windows to detect their opening and closing. Several magnetic reed switches may be wired in series. Part Name Part Number Contact Type Magnetic Reed Door & Window Switch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . FGD-0006 46 www.sensaphone.com
