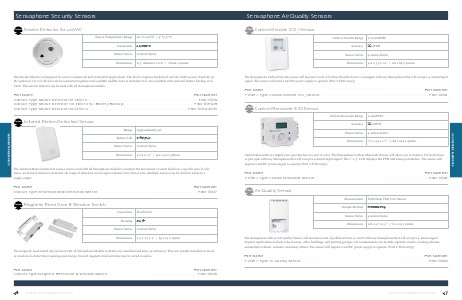

2014 Sensaphone Catalog May 2014 | Page 47

Sensaphone Air Quality Sensors 4-20mA Series Carbon Dioxide (CO2) Sensor Carbon Dioxide Range Accuracy Sensor Series Dimensions 0-2,000PPM ± 50PPM 4-20mA Series 4.6 x 3.3 x 1.2” | 116 x 84 x 30mm The Sensaphone Carbon Dioxide sensor will monitor levels of Carbon Dioxide from 0-2,000ppm with any Sensaphone that will accept a 4-20mA input signal. The sensor will need a 24VDC power supply to operate (Part # FGD-0053) Part Name Part Number 4-20mA Type Carbon Dioxide (CO2) Sensor. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . FGD-0068 4-20mA Series Carbon Monoxide (CO) Sensor Carbon Monoxide Range Accuracy Dimensions ± 5%PPM 4-20mA Series 7.2 x 4.9 x 1.7” | 182 x 124 x 43mm Carbon Monoxide is a highly toxic gas that has no color or odor. The Sensaphone Carbon Monoxide Sensor will allow you to monitor CO levels from 0-300 ppm with any Sensaphone that will accept a 4-20mA input signal. The 1” x .5” LCD displays the PPM and menu parameters. The sensor will require a 24VDC power supply to operate (Part # FGD-0053). Part Name Part Number 4-20mA Type Carbon Monoxide Sensor . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . FGD-0065 4-20mA Series Air Quality Sensor Measurement Sample Method Sensor Series Dimensions Solid State TGD VOC Sensor Flow Through 4-20mA Series 2.8 x 4.7 x 1.3” | 71 x 119 x 32mm The Sensaphone Indoor Air Quality Sensor will monitor levels of pollution from 0–100% with any Sensaphone that will accept a 4-20mA signal. Popular applications include schoolrooms, office buildings, and parking garages. Air contaminants can include cigarette smoke, cooking exhaust, automobile exhaust, solvents, and many others. The sensor will require a 24VDC power supply to operate. (Part # FGD-0053) Part Name Part Number 4-20mA Type Air Quality Sensor . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . FGD-0066 www.sensaphone.com 47 Accessories & Sensors Sensor Series 0-500PPM
