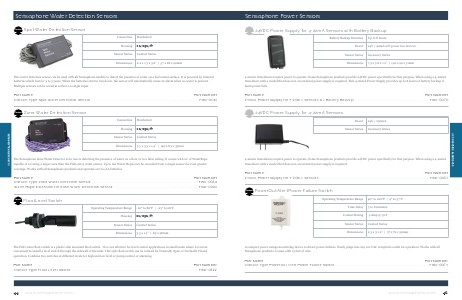

Sensaphone Power Sensors
Accessory
Series
24VDC Power Supply for 4-20mA Sensors with Battery Backup
Battery Backup Duration
Power
Sensor Series
Dimensions
Up to 8 hours
24V / 40mA will power two devices
Accessory Series
7.5 x 3.6 x 1.2” | 190 x 92 x 31mm
4-20mA transducers require power to operate. Some Sensaphone products provide 24VDC power specifically for this purpose. When using a 4-20mA
transducer with a model that does not, an external power supply is required. This 4-20mA Power Supply provides up to 8 hours of battery backup if
main power fails.
Part Name
Part Number
24VDC Power Supply for 4-20mA Sensors w/ Battery Backup . . . . . . . . . . . . . . . . . . . . . . . . . . . . FGD-0070
Accessory
Series
24VDC Power Supply for 4-20mA Sensors
Power
Sensor Series
24V / 250mA
Accessory Series
Part Name
Part Number
24VDC Power Supply for 4-20mA Sensors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . FGD-0053
Contact
Series
PowerOut Alert Power Failure Switch
Operating Temperature Range
40° to 100°F | 4° to 37°C
Time Delay
3 to 8 minutes
Contact Rating
.5 Amp @ 30V
Sensor Series
Contact Series
Dimensions
2.3 x 3 x 2” | 57 x 76 x 50mm
A compact power outage monitoring device to detect power failures. Easily plugs into any 110 VAC receptacle outlet for operation. Works with all
Sensaphone products. Comes with 15 feet of wire.
Part Name
Part Number
Contact Type PowerOut Alert Power Failure Switch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . FGD-0054
www.sensaphone.com
45
Accessories & Sensors
4-20mA transducers require power to operate. Some Sensaphone products provide 24VDC power specifically for this purpose. When using a 4-20mA
transducer with a model that does not, an external power supply is required.
