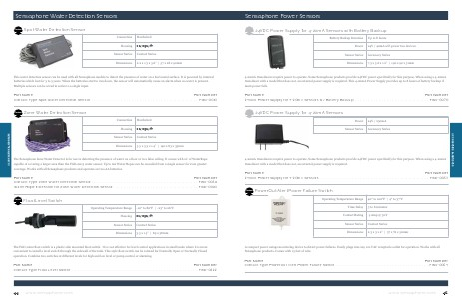

2014 Sensaphone Catalog May 2014 | Page 44

Sensaphone Water Detection Sensors Contact Series Spot Water Detection Sensor Connection Housing Sensor Series Dimensions Hardwired Black plastic Contact Series 2.2 x 1.3 x 3.6” | 57 x 28 x 92mm This water detection sensor can be used with all Sensaphone models to detect the presence of water on a horizontal surface. It is powered by internal batteries which last for 3 to 5 years. When the batteries start to run down, the sensor will automatically cause an alarm when no water is present. Multiple sensors can be wired in series to a single input. Part Name Part Number Contact Type Spot Water Detection Sensor . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . FGD-0013 Contact Series Zone Water Detection Sensor Connection Accessories & Sensors Housing Sensor Series Dimensions Hardwired Black plastic Contact Series 5.5 x 3.3 x 1.4” | 140 x 83 x 33mm The Sensaphone Zone Water Detector is for use in detecting the presence of water on a floor or in a false ceiling. It comes with 10’ of WaterRope capable of covering a larger area than the FGD-0013 water sensor. Up to ten Water Ropes can be cascaded from a single sensor for even greater coverage. Works with all Sensaphone products and operates on two AA batteries. Part Name Part Number Contact Type Zone Water Detection Sensor . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . FGD-0056 Water Rope Extension for Zone Water Detection Sensor . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . FGD-0063 Contact Series Float Level Switch Operating Temperature Range Housing Sensor Series Dimensions -10° to 80°F | -23° to 26°C Black plastic Contact Series 3.5 x 1.5” | 89 x 38mm The FGD-0222 float switch is a plastic side mounted float switch. It is cost effective for level control applications in small tanks where it is more convenient to install a level switch through the sidewall of the tank. This style float switch can be rotated for Normally Open or Normally Closed operation. Combine two switches at different levels for high and low level or pump control or alarming. Part Name Part Number Contact Type Float Level Switch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . FGD-0222 44 www.sensaphone.com
