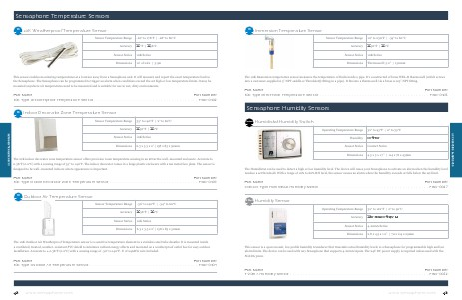

2014 Sensaphone Catalog May 2014 | Page 43

10K Series Immersion Temperature Sensor Sensor Temperature Range Accuracy Sensor Series Dimensions 10° to 230°F | -34° to 60°C ± .36°F | ±.2°C 10K Series Thermowell: 5.2” | 130mm The 10K Immersion temperature sensor measures the temperature of fluids inside a pipe. It’s constructed of brass WEL-B thermowell (which screws into a customer-supplied 0.5” NPT saddle or Thredolet® fitting in a pipe). It fits into a thermowell via a brass 0.125” NPT fitting. Part Name Part Number 10K Type Immersion Temperature Sensor . . . . . . . . . . . . . . . . . . . . . . . . .
