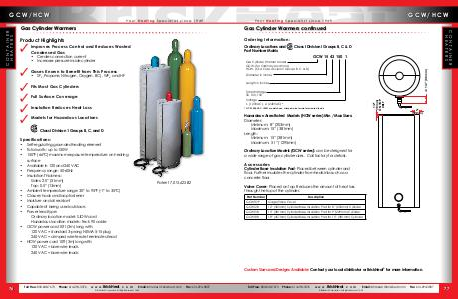

14th-Edition-BriskHeat-Product-Catalog A | Page 88

CONTAINER
HEATERS

GCW/HCW

Your Heating Specialist since 1949

Gas Cylinder Warmers
Product Highlights

Improves Process Control and Reduces Wasted
Condensed Gas
• Creates convection current
• Increases pressure inside cylinder

Gases Known to Benefit from This Process

• SF6 ,Propane, Nitrogen, Oxygen, BCl3, WF6, and HF

Fits Most Gas Cylinders
Full Surface Coverage
Insulation Reduces Heat Loss
Models for Hazardous Locations
Class I Division 1 Groups B, C, and D

Specifications:

• Self-regulating grounded heating element
• Total watts: up to 150W
• 150°F (66°C) maximum exposure temperature on heating
surface
• Available in 120 and 240 VAC
• Frequency range: 50-60Hz
• Insulation Thickness:
Sides: 2.0” (51mm)
Top: 0.5” (13mm)
• Ambient temperature range: 30° to 95°F (-1° to 35°C)
• Closure: hook and loop fastener
• Moisture and oil resistant
• Capable of being used outdoors
• Power lead type:
Ordinary location model: SJOW cord
Hazardous locatio n models: Teck 90 cable
• GCW power cord 10ft (3m) long with:
120 VAC = standard 3-prong NEMA 5-15 plug
240 VAC = crimped wire ferrule terminated lead
• HCW power cord 10ft (3m) long with:
120 VAC = bare wire leads
240 VAC = bare wire leads

76

Patent 7,015,425 B2

Toll Free: 800-848-7673 Phone: [phone] w w w .BriskHeat. c o m Email: [e-mail] Fax: [phone]
© BriskHeat Corporation. All Rights Reserved. 16-06
