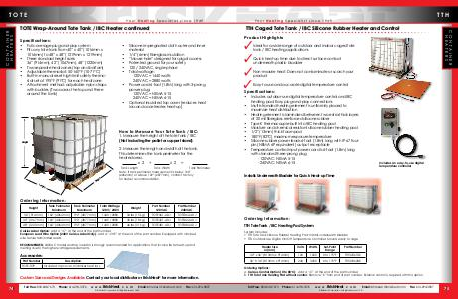

14th-Edition-BriskHeat-Product-Catalog A | Page 87

TTH

Your Heating Specialist since 1949

Product Highlights
Ideal for a wide range of outdoor and indoor caged tote
tank / IBC heating applications
Quick heat-up time due to direct surface contact
underneath plastic bladder

CONTAINER
HEATERS

TTH Caged Tote Tank / IBC Silicone Rubber Heater and Control

Non-invasive heat: Does not contaminate or scorch your
product
Easy-to-use and accurate digital temperature control

Specifications:
• Includes outdoor-use digital temperature control and IBC
heating pad. Easy plug-and-play connections
• Multi-stranded heating element is uniformily placed to
maximize heat distribution
• Heating element is laminated between two extra-thick layers
of 20 mil fiberglass reinforced silicone rubber
• Type K thermocouple built into IBC heating pad
• Moisture and chemical resistant silicone rubber heating pad
• 1/2” (13mm) thick foam pad
• 180°F (82°C) maximum exposure temperature
• Silicone rubber power leads 6-foot (1.8m) long with IP 67 fourpin (NEMA 6P equivalent) output receptacle
• Temperature control input power cord is 6-foot (1.8m) long
with standard three-prong plug

- 120VAC: NEMA 5-15

- 240VAC: NEMA 6-15

Includes an easy-to-use digital
temperature controller

Installs Underneath Bladder for Quick Heat-up Time

Ordering Information:
TTH Tote Tank / IBC Heating Pad System
System Includes:
• TTH Tote Tank Silicone Rubber Heating Pad: Installs underneath bladder
• TTD Outdoor-Use Digital On/Off Temperature Controller: Mounts easily to cage
Heater Size
in (mm)

Volts

Watts

Set-Point
Range

Part Number

32” x 36” (813mm x 914mm)

120

1600

0 to 175°F

TTH32361DK

32” X 36” (813mm x 914mm)

240

3200

0 to 175°F

TTH32362DK

Ordering Options:
A. Celsius Control Option (0 to 80°C): Add a “-C” at the end of the part number.
B. TTH Tote Tank Heating Pad without control: Remove “K” from end of part number. External control is required with this option.
