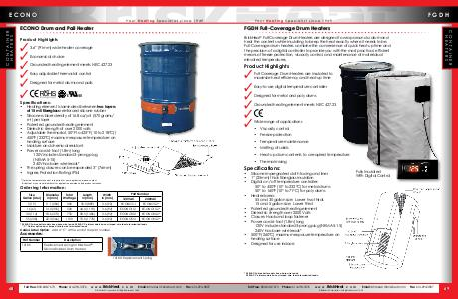

14th-Edition-BriskHeat-Product-Catalog A | Page 81

FGDH

Your Heating Specialist since 1949

BriskHeat® Full-Coverage Drum Heaters are designed to wrap around a drum and
heat the contents while insulating to keep the heat exactly where it needs to be.
Full-Coverage drum heaters combine the convenience of quick heat-up time and
the precision of a digital controller to provide you with the most practical, efficient
means of freeze protection, viscosity control, and maintenance of materials at
elevated temperatures.

Product Highlights

CONTAINER
HEATERS

FGDH Full-Coverage Drum Heaters

Full-Coverage Drum Heaters are insulated to
maximize heat efficiency and heat-up time
Easy-to-use digital temperature controller
Designed for metal and poly drums
Grounded heating element meets NEC 427.23

Wide range of applications
• Viscosity control
• Freeze protection
• Temperature maintenance
• Melting of solids
• Heat-up drum contents to a required temperature
• Thermal mixing

Specifications:

• Silicone impregnated cloth facing and liner
• 1” (25mm) thick fiberglass insulation
• Digital on / off temperature controller:
50° to 450°F (10° to 232°C) for metal drums
50° to 160°F (10° to 71°C) for poly drums
• Ηeated area:
55 and 30 gallon size: Lower two thirds
15 and 5 gallon size: Lower third
• Patented grounded heating element
• Dielectric strength over 2000 Volts
• Closure: Hook and loop fastener
• Power cord 6-foot (1.8m) long
120V include standard 3-prong plug (NEMA 5-15)
240V has bare wire leads*
• 500°F (260°C) maximum exposure temperature on
heating surface
• Designed for use indoors

Fully Insulated
With Digital Control

* 240VAC Fahrenheit models have bare wire leads.
240VAC Celsius models have crimped wire ferrule terminated leads.
