CONTAINER
HEATERS

ECONO

Your Heating Specialist since 1949

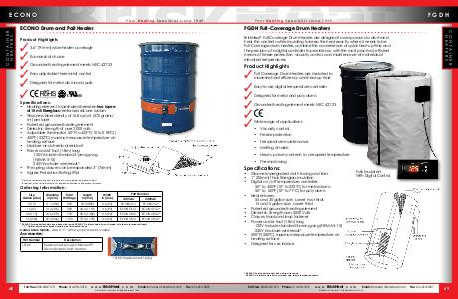

ECONO Drum and Pail Heater
Product Highlights
3.6” (91mm) wide heater coverage
Economical choice
Grounded heating element meets NEC 427.23
Easy adjustable thermostat control
Designed for metal drums and pails

Specifications:

• Heating element is laminated between two layers
of 15 mil fiberglass reinforced silicone rubber
• Silicone rubber density of 16.8 oz/yd2 (570 grams/
m2) per layer
• Patented grounded heating element
• Dielectric strength of over 2000 volts
• Adjustable thermostat, 50°F to 425°F (10 to 218°C)†
• 450°F (232°C) maximum exposure temperature on
heating surface
• Moisture and chemical resistant
• Power cord 6-foot (1.8m) long

120V include standard 3-prong plug

(NEMA 5-15)

240V has bare wire leads*
• The spring closure can be expanded 3” (76mm)
• Ingress Protection Rating: IP54
†

If precise temperature control is required for your application, please contact
BriskHeat or your local distributor for application assistance and product solutions.

Ordering Information:
Size
Gallon (Liter)

Diameter
in (mm)

Total
Wattage

Length
in (mm)

Width
in (mm)

Part Number
120VAC

240VAC

5 (19)

11.1 (282)

300

35.0 (889)

3.6 (92)

ECONO5-1

ECONO5-2*

16 (61)

14.0 (355)

500

44.0 (1118)

3.6 (92)

ECONO15-1

ECONO15-2*

30 (114)

18.6 (473)

750

58.5 (1486)

3.6 (92)

ECONO30-1

ECONO30-2*

55 (208)

22.3 (566)

1100

70.0 (1778)

3.6 (92)

ECONO55-1

ECONO55-2*

* 240VAC Fahrenheit models have bare wire leads. 240VAC Celsius models have crimped wire ferrule terminated leads.
“-C” Celsius option has crimped ferrule wire terminated leads.

Celsius Label Option: Add a “C” at the end of the part number.

Accessories:
Part Number
10180

Description
Replacement spring for BriskHeat®
Silicone Rubber Drum Heaters
10180: Replacement Spring
