KM

Your Heating Specialist since 1949

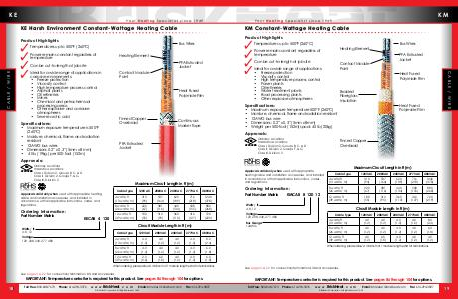

KM Constant-Wattage Heating Cable
Product Highlights
Temperatures up to 500°F (260°C)
Power remains constant regardless of
temperature
Can be cut-to-length at job site

PFA Extruded
Jacket

Contact Module
Point

CABLE / WIRE

Ideal for a wide range of applications:
• Freeze protection
• Viscosity control
• High temperature process control
• Power plants
• Oil refineries
• Water treatment plants
• Food processing plants
• Other explosive atmospheres

Heat Fused
Polyimide Film
Braided
Fiberglass
Insulation

Specifications:
•
•
•
•
•

Bus Wires

Heating Element

Heat Fused
Polyimide Film

Maximum exposure temperature 500°F (260°C)
Moisture, chemical, flame and radiation resistant
12AWG bus wire
Dimensions: 0.2” x 0.3” (5mm x 8mm)
Weight per 500-foot (152m) spool: 45 lb (20kg)

Approvals:

Ordinary Locations
FM
APPROVED

Tinned Copper
Overbraid

Hazardous Locations:
Class I, Division 2, Groups B, C, & D
Class II, Division 2, Groups F, & G
Class III, Division 2

Approvals valid only when used with appropriate
heating cable and installation accessories, and installed
in accordance with all applicable instructions, codes,
and regulations.

Ordering Information:
Part Number Matrix

KMCAB 8 120 12

Maximum Circuit Length in ft (m)
Cable Type

120VAC

208VAC

240VAC

277VAC

480VAC

4 watts/ft
(13 watts/ m)

310
(94)

537
(164)

620
(189)

716
(218)

1240
(378)

8 watts/ ft
(26 watts/ m)

220
(67)

381
(116)

440
(134)

508
(155)

880
(268)

12 watts/ ft
(39 watts/ m)

180
(55)

312
(95)

360
(110)

416
(127)

720
(219)

Watts / ft:
4, 8, 12

Circuit Module Length in ft (m)

Voltage:
120, 208, 240, 277, 480

Cable Type

Bus Gauge:
12AWG

120VAC

208VAC

240VAC

277VAC

480VAC

4 watts/ft
(13 watts/ m)

4.0
(1.2)

4.0
(1.2)

4.0
(1.2)

4.0
(1.2)

8.0
(2.4)

8 watts/ ft
(26 watts/ m)

4.0
(1.2)

4.0
(1.2)

4.0
(1.2)

4.0
(1.2)

6.0
(1.8)

12 watts/ ft
(39 watts/ m)

4.0
(1.2)

6.0
(1.8)

4.0
(1.2)

4.0
(1.2)

4.0
(1.2)

When ordering, please allow a minimum of 1 module length extra for terminations.

See page 21 & 22 for connection/termination kits and accessories.

IMPORTANT: Temperature controller is required for this product. See pages 86 through 104 for options.
