SPEEDTRACE
SPEEDTRACE
Your Heating Specialist since 1949

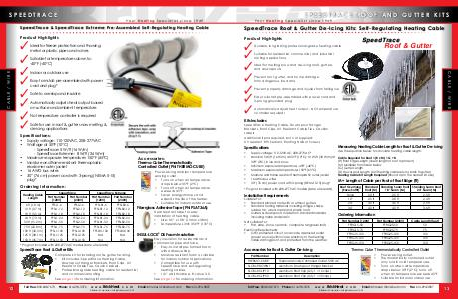

SpeedTrace & SpeedTrace Extreme Pre-Assembled Self-Regulating Heating Cable
Product Highlights
Ideal for freeze protection and thawing: metal or plastic pipes and valves
Suitable for temperatures down to:-40 ° F(-40 ° C)
CABLE / WIRE
Indoor or outdoor use
Easy-to-install: pre-assembled with power cord and plug *
Safe to overlap and insulate
Automatically adjusts heat output based on surface and ambient temperature
No temperature controller is required
Safe for use in roof & gutter snow melting & de-icing applications
Specifications:
• Supply voltage: 110-120VAC, 208-277VAC
• Wattage at 50 ° F( 10 ° C)- SpeedTrace: 5 W / ft( 16 W / m)- SpeedTrace Extreme: 8 W / ft( 26 W / m)
• Maximum exposure temperature: 150 ° F( 65 ° C)
• Moisture and flame resistant thermoplastic elastomer outer jacket
• 16 AWG bus wires
• 30”( 76 cm) power cord with 3-prong( NEMA 5-15) plug *
Ordering Information:
Heating Cable Length
Part Number( 120V)
SpeedTrace
Part Number( 230V)
SpeedTrace Extreme
Part Number( 120V)
Part Number( 230V)
6 ft( 1.8 m) FFSL1-6 FFSL2-6 FFSL81-6 FFSL82-6 12 ft( 3.7 m) FFSL1-12 FFSL2-12 FFSL81-12 FFSL82-12 18 ft( 5.5 m) FFSL1-18 FFSL2-18 FFSL81-18 FFSL82-18 24 ft( 7.3 m) FFSL1-24 FFSL2-24 FFSL81-24 FFSL82-24 50 ft( 15.2 m) FFSL1-50 FFSL2-50 FFSL81-50 FFSL82-50 75 ft( 22.8 m) FFSL1-75 FFSL2-75 FFSL81-75 FFSL82-75 100 ft( 30.5 m) FFSL1-100 FFSL2-100 FFSL81-100 FFSL82-100 125 ft( 38.1 m) FFSL1-125 FFSL2-125 N / A N / A 150 ft( 45.7 m) FFSL1-150 FFSL2-150 N / A N / A
* Plug not included with 208-277VAC models( bare wire leads).
SpeedTrace Roof & Gutter Kits
Complete kit for installing roof & gutter heating.
• Kit Includes: SpeedTrace Heating Cable, Downspout Hanger Brackets, Roof Clips, UV Resistant Cable Ties, Caution Labels.
• Professional-grade heating cable for residential and commercial roofing.
See page 13 for ordering information.
Accessories:
Thermo-Cube Thermostatically
Controlled Outlet( PN: THERMO-CUBE) Power-saving ambient temperature sensing outlet.
• Turns on when air temperature drops below 35 ° F( 2 ° C)
• Turns off when air temperature exceeds 45 ° F.
• Saves energy / money and extends the life of the heater.
• Suitable for indoor / outdoor use.
Fiberglass Adhesive Tape( PN: PSAT36A) Heat resistant tape for easy installation of heating cable.
• Size: 0.5” x 108’( 13mm x 38m)
• Temperature Limit: 350 ° F( 176 ° C)
INSUL-LOCK ® DS Foam Insulation Easy insulation for residential and commercial pipe and tube.
• Easy-to-install pre-formed foam with adhesive flap.
• Moisture resistant foam is suitable for indoor / outdoor applications.
• Compatible for use with
SpeedTrace and self-regulating heating cables.
• 1 / 2” wall thickness; R-value 3.0. See page 14 for ordering information.
12
Toll Free: 800-848-7673 Phone: 614-294-3376 w w w. BriskHeat. c o m Email: bhtsales1 @ briskheat. com Fax: 614-294-3807
© BriskHeat Corporation. All Rights Reserved. 16-03
