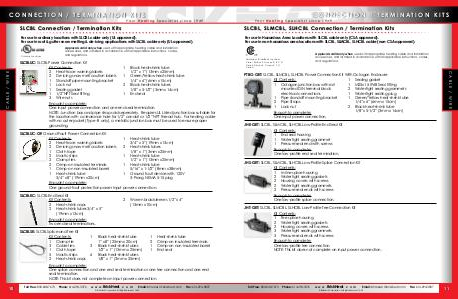

14th-Edition-BriskHeat-Product-Catalog A | Page 23

CONNECTION / TERMINATION KITS Your Heating Specialist since 1949 SLCBL, SLMCBL, SLHCBL Connection / Termination Kits For use in Hazardous Area Locations with SLCBL cable only (CSA approved). For use in non-hazardous area locations with SLCBL, SLMCBL, SLHCBL cable (non-CSA approved). Hazardous (Classified) Locations Class I, Division 2, Groups A, B, C, D Class II, Division 2, Groups E, F, G Class III Approvals valid only when used with appropriate heating cable and installation accessories, and installed in accordance with all applicable instructions, codes, and regulations. Kit Contents: 1 Octagon junction box with rail mounted DIN terminal block electrical connections 1 Pipe standoff mounting bracket 2 Pipe Straps 1 Lock nut Enough to complete: One input power connection. 1 1 2 1 1 2 Sealing gasket M25x1.5 IP68 Seal fitting Watertight sealing grommets Watertight sealing plug Green/Yellow heat-shrink tube 1/4” x 6” (6mm x 15cm) Black heat-shrink tube 1/8” x 5-1/2” (3mm x 14cm) CABLE / WIRE PTBO-GET: SLCBL, SLMCBL, SLHCBL Power Connection Kit With Octagon Enclosure JHE-GET: SLCBL, SLMCBL, SLHCBL Low-Profile End Seal Kit Kit Contents: 1 End seal housing 1 Watertight sealing grommet 1 Pressure seal end with screws Enough to complete: One low-profile end seal termination. JHS-GET: SLCBL, SLMCBL, SLHCBL Low-Profile Splice Connection Kit Kit Contents: 1 In-line splice housing 2 Watertight sealing gaskets 2 Housing covers with screws 2 Watertight sealing grommets 2 Pressure seal ends with screws Enough to complete: One low-profile splice connection. JHT-GET: SLCBL, SLMCBL, SLHCBL Low-Profile Tee Connection Kit Kit Contents: 1 Tee splice housing 2 Watertight sealing gaskets 2 Housing covers with screws 3 Watertight sealing grommets 3 Pressure seal ends with screws Enough to complete: One low-profile tee connection. NOTE: This kit does not complete an input power connection. Toll Free: 800-848-7673 Phone: [phone] w w w .BriskHeat. c o m Email: [email protected] Fax: [phone] © BriskHeat Corporation. All Rights Reserved. 16-03 11
