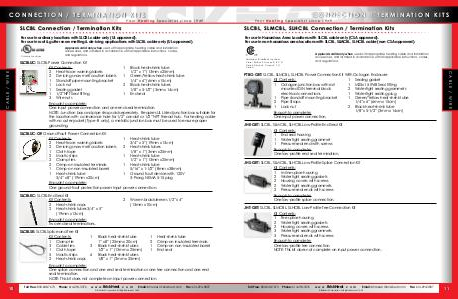

CONNECTION / TERMINATION KITS
CONNECTION / TERMINATION KITS
SLCBL Connection / Termination Kits
Your Heating Specialist since 1949
For use in ordinary locations with SLCBL cable only( UL approved). For use in roof & gutter snow melting & de-icing applications with SLCBL cable only( UL approved).
Ordinary Locations
Approvals valid only when used with appropriate heating cable and installation accessories, and installed in accordance with all applicable instructions, codes, and regulations.
CABLE / WIRE
SLCBLUC: SLCBL Power Connection Kit Kit Contents: 2 Heat-trace warning labels 2 De-icing snow melt caution labels 1 Standoff pipe mounting bracket 1 Lock nut 1 Sealing gasket 1 1 / 2” NPT Seal fitting 3 Wire nuts
1 Black heat-shrink tube 1 / 2” x 1”( 13mm x 25mm) 1 Green / Yellow heat-shrink tube 1 / 4” x 6”( 6mm x 15cm)
2 Black heat-shrink tubes 1 / 8” x 5-1 / 2”( 3mm x 14cm)
1 End seal
Enough to complete: One input power connection and one end seal termination. NOTE: Junction box and pipe strap sold seperately. Requires UL Listed junction box suitable for the location with a clearance hole for 1 / 2” conduit or 1 / 2” NPT thread hub. For heating cable with no outer-jacket( Type-B only), a metallic junction box must be used to ensure proper grounding.
SLCBLUC-GF: Ground Fault Power Connection Kit Kit Contents: 2 Heat-trace warning labels 2 De-icing snow melt caution labels 1 Cloth tape 2 Mastic strips 2 Clamp ties 2 Crimp-on insulated terminals 1 Crimp-on non-insulated barrel 1 Heat-shrink tube
3 / 4” x 8”( 19mm x 20cm)
1 Heat-shrink tube 3 / 4” x 5”( 19mm x 13cm)
2 Heat-shrink tubes 1 / 8” x 1”( 3mm x 25mm)
1 Heat-shrink tube 1 / 2” x 1”( 13mm x 25mm)
1 Heat-shrink tube 5 / 16” x 1-1 / 2”( 8mm x 38mm)
1 Ground fault device with 120V 3-Prong NEMA 5-15 plug
Enough to complete: One ground-fault protection power input power connection.
SLCBLKC: SLCBL End Seal Kit Kit Contents: 2 Heat-shrink caps 2 Heat-shrink tubes 3 / 4” x 5”
( 19mm x 13cm)
Enough to complete: Two end seal terminations.
2 Woven braid sleeves 1 / 2” x 4”( 13mm x 10cm)
SLCBLSK: SLCBL Splice and Tee Kit Kit Contents: 1 Clamp tie 3 Cable ties 1 Cloth tape 5 Mastic strips 2 Heat-shrink caps
1 Black heat-shrink tube 1” x 8”( 25mm x 20cm)
3 Black heat-shrink tubes 1 / 2” x 1”( 13mm x 25mm)
6 Black heat-shrink tubes 1 / 8” x 1”( 3mm x 25mm)
1 Heat-shrink tube 2 Crimp-on insulated terminals 1 Crimp-on non-insulated barrel 1 End seal
Enough to complete: One splice connection and one end seal termination or one tee connection and one end seal termination. NOTE: This kit does not complete an input power connection.
Toll Free: 800-848-7673 Phone: 614-294-3376 w w w. BriskHeat. c o m Email: bhtsales1 @ briskheat. com Fax: 614-294-3807
10
© BriskHeat Corporation. All Rights Reserved. 16-03
