FGH/SXH

Your Heating Specialist since 1949

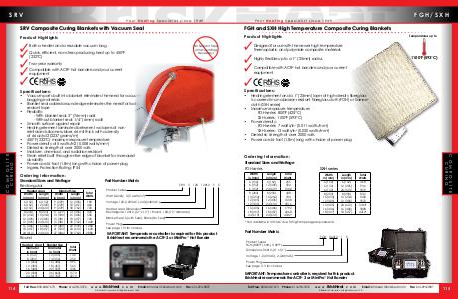

FGH and SXH High Temperature Composite Curing Blankets
Product Highlights

Temperatures up to

Designed for use with the newer high temperature
thermoplastic and polymide composite materials
1100°F (593°C)

Highly flexible up to a 1” (25mm) radius
Compatible with ACR® hot bonders and your current
equipment

Specifications:

• Heating element and a 1” (25mm) layer of high-density fiberglass
is covered in an abrasion resistant fiberglass cloth (FGH) or Samox®
cloth (SXH series)
• Μaximum exposure temperature:

FGH series: 800°F (425°C)

SXH series: 1100°F (593°C)
• Power density:

FGH series: 7 watts/in2 (0.011 watts/mm2)

SXH series: 13 watts/in2 (0.020 watts/mm2)
• Dielectric strength of over 2000 volts
• Power cord 6-foot (1.8m) long with choice of power plug

Standard Sizes and Wattage
FGH series
Width
in (mm)
6 (152)
6 (152)
6 (152)
8 (203)
10 (254)
12 (305)
12 (305)
16 (406)
18 (457)
24 (610)

SXH series
Length
in (mm)
6 (152)
12 (305)
24 (610)
8 (203)
10 (254)
12 (305)
24 (610)
16 (406)
18 (457)
24 (610)

Total
Watts
255
504
1008
448
700
1008
2016
1792
2268
4032*

Width
in (mm)
6 (152)
6 (152)
6 (152)
8 (203)
10 (254)
12 (305)
12 (305)
16 (406)
18 (457)

Length
in (mm)
6 (152)
12 (305)
24 (610)
8 (203)
10 (254)
12 (305)
24 (610)
16 (406)
18 (457)

Total
Watts
468
936
1872
832
1300
1872
3744*
3328
4212*

C O M P O S I T E
CURING

Ordering Information:

* Not available in 120VAC due to high amperage requirements

Part Number Matrix
FGH

06X12

1

C

Product Series
FGH-(800°F), SXH-(1100°F)
Dimensions, 06X12-(6” x 12”)
Voltage, 1-(120VAC), 2-(240VAC)
Power Plug
See page 113 for choices

IMPORTANT: Temperature controller is required for this product.
BriskHeat recommends the ACR® 3 or MiniPro™ Hot Bonder
