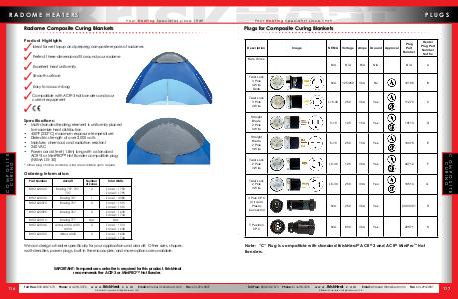

14th-Edition-BriskHeat-Product-Catalog A | Page 128

RADOME HEATERS

Your Heating Specialist since 1949

Radome Composite Curing Blankets
Product Highlights
Ideal for wet layup and prepreg composite repairs of radomes
Perfect three-dimensional fit around your radome
Excellent heat uniformity
Smooth surface
Easy to vacuum bag
Compatible with ACR®3 hot bonders and your
current equipment

C O M P O S I T E
CURING

Specifications:

• Multi-stranded heating element is uniformily placed
to maximize heat distribution
• 450°F (232°C) maximum exposure temperature
• Dielectric strength of over 2,000 volts
• Moisture, chemical, and radiation resistant
• 240 VAC
• Power cord 6 feet (1.8m) long with a standard
ACR®3 or MiniPRO™ Hot Bonder compatible plug
(NEMA L15-30)
* Other plug choices and bare wires are available upon request

Ordering Information:
Part Number

Aircraft

Number
of Zones

Total Watts

BHC162012C

Boeing 707, 727,
737

2

Zone 1: 1750
Zone 2: 1795

BHC162013C

Boeing 747

1

Zone 1: 3380

BHC162007C

Boeing 757

2

Zone 1: 1515
Zone 2: 1515

BHC162009C

Boeing 767

2

Zone 1: 1630
Zone 2: 1744

BHC162011C

Boeing 777

N/A

N/A

BHC162014C

Airbus A300, A310,
A330

2

Zone 1: 1513
Zone 2: 1638

BHC162010C

Airbus A320

2

Zone 1: 1630
Zone 2: 1744

We can design a heater specifically for your application and aircraft: Other sizes, shapes,
watt-densities, power plugs, built-in thermocouples, and more options are available.

IMPORTANT: Temperature controller is required for this product. BriskHeat
recommends the ACR®3 or MiniPRO™ Hot Bonder.
