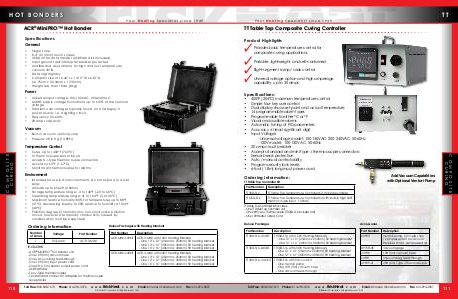

HOT BONDERS

Your Heating Specialist since 1949

ACR® MiniPRO™ Hot Bonder
Specifications
General
•
•
•
•
•
•
•
•

Single zone
8.4” (213mm) touch screen
USB port for data transfer (USB flash disk included)
Input ground fault interrupter breaker protected
Audible and visual alarms for high and low temperature/
vacuum limits
Data logs digitally
Compact size of 16.44”L x 13.13”W x 6.81”D
(41.75cm x 33.34cm x 17.30cm)
Weighs less than 18 lbs (8 kg)

Power
•
•
•
•
•

Universal input voltage: 100-130VAC, 200-240VAC
MAINS supply voltage fluctuations up to ±10% of the nominal
voltage
Transient over voltages typically found on a Category II
power source: i.e. a lighting circuit.
Frequency: 50-60Hz
20 amps capacity

Vacuum
•
•

Built-in vacuum venturi pump
Pressure: 28 in Hg (13.8PSI)

C O M P O S I T E
CURING

Temperature Control
•
•
•
•
•

Cures up to 1400°F (760°C)
10 thermocouple sensor inputs
Accepts J-type thermocouple connectors
Accuracy: ±3°F (1.67°C)
Monitors all thermocouples for alarms

Environment
•
•
•
•
•
•
•
•

Intended for use in dry environments. Do not expose to a wet
spray
Altitude up to 6562ft (2,000m)
Storage temperature range: -4 to 140°F (-20 to 60°C)
Operating temperature range: 41 to 104°F (5 to 40°C)
Maximum relative humidity: 80% for temperatures up to 88ºF
(31ºC) decreasing linearly to 50% relative to humidity at 104ºF
(40ºC)
Pollution degree 2 (normally only non-conductive pollution
occurs, however a temporary conductivity caused by
condensation must be expected)

Ordering Information

Deluxe Packages with Heating Blankets

Number
of Zones

Voltage

Part Number

1

Universal

ACR-3-MINI

Part Number

Description

ACR-MINI-120KIT

ACR-3-MINI with 120V Heating Blankets
- One 10” x 10” (254mm x 254mm) SR heating blanket
- One 12” x 12” (305mm x 305mm) SR heating blanket
- One 16” x 16” (406mm x 406mm) SR heating blanket

ACR-MINI-240KIT

ACR-3-MINI with 240V Heating Blankets
- One 10” x 10” (254mm x 254mm) SR heating blanket
- One 12” x 12” (305mm x 305mm) SR heating blanket
- One 16” x 16” (406mm x 406mm) SR heating blanket

Includes:
- ACR® MiniPRO™ hot bonder unit
- One 10ft (3m) vacuum hose
- One vacuum bag feed-through
- One 10ft (3m) input power cord
- One 5ft (1.5m) heater output power cord
- USB flash disk
- Ten J-Type thermocouples
- Ten standard connector adapters for thermocouple
receptacles
