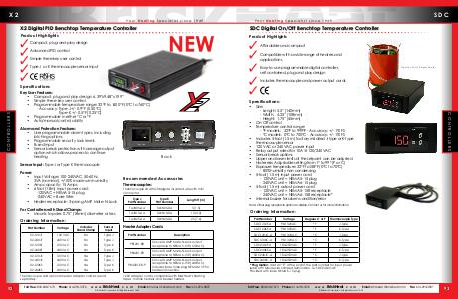

14th-Edition-BriskHeat-Product-Catalog A | Page 104

X2

Your Heating Specialist since 1949

X2 Digital PID Benchtop Temperature Controller
Product Highlights
Compact, plug-and-play design
Advanced PID control
Simple three-key user control
Type J or K thermocouple sensor input

CONTROLLERS

Specifications
Key User Features:
• Compact, plug and play design: 6.39”x9.48”x1.99”
• Simple three-key user control
• Programmable temperature range: 32°F to 1400°F (0°C to 760°C)

- Accuracy: Type-J +/- 0.9°F (0.50°C)

Type-K +/- 0.5°F (0.25°C)
• Programmable in either °C or °F
• Auto/manual control ability
Alarm and Protection Features:
• User programmable alarm types, including
latching options
• Programmable security lock levels
• Fused input
• Sensor break protection with average output
option which allows process to continue
heating

Back

Sensor Input: Type J or Type K thermocouple
Power:
• Input Voltage: 100-240VAC, 50-60hz,
3VA (nominal), +/-10% maximum humidity
• Amp capacity: 15 Amps
• 6 foot (1.8m) input power cord:
-120VAC = NEMA 5-15 plug
-240VAC = Bare Wire
• Heater receptacle: 3-prong AMP Mate-N-Lock

Thermocouples:

Thermocouple 24 AWG fiberglass insulated wire with mini
connector.
Type J
Part Number

Type K
Part Number

Length ft (m)

For Controllers with Stand Clamps:
• Mounts to poles 0.75” (18mm) diameter or less

TAJN05-AA

TAKN05-DA

5 (1.5)

TAJN10-AA

TAKN10-DA

10 (3.0)

Ordering Information:

TAJN25-AA

TAKN25-DA

25 (7.6)

Part Number

Voltage

Includes
Stand Clamp

Sensor
Input

X2-120JT

120 VAC

No

Type J

X2-240JT

240 VAC

No

Type J

X2-120KT

120 VAC

No

Type K

X2-240KT

240 VAC

No

Type K

X2-120JS

120 VAC

Yes

Type J

X2-240JS

240 VAC

Yes

Type J

X2-120KS

120 VAC

Yes

Type K

X2-240KS

240 VAC

Yes

Type K

Thermocouple and optional heater adapter cords are sold
separately.

92

Recommended Accessories

Toll Free: 800-848-7673

Phone: [phone]

Heater Adapter Cords:
Part Number

Description

PB1201-BR

Converts AMP Mate-N-Lock output
receptacle to NEMA 5-15R (120VAC).

PB4201-ER

Converts AMP Mate-N-Lock output
receptacle to NEMA 6-15R (240VAC).

PB4201-ER-P

Converts AMP Mate-N-Lock output
receptacle to NEMA 6-15R (240VAC).
Includes loose male plug NEMA6-15P for
heater con
