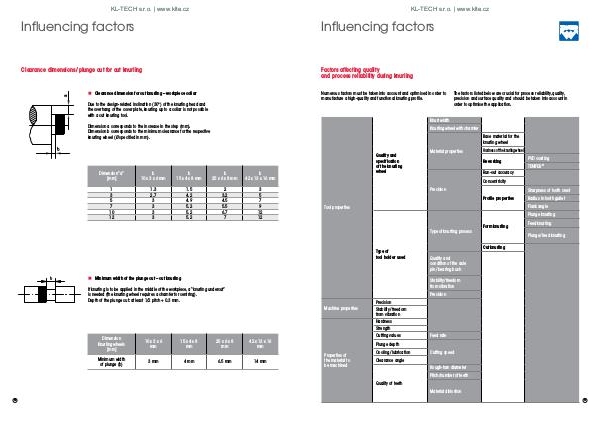

Influencing factors
Factors affecting quality
and process reliability during knurling
Numerous factors must be taken into account and optimised in order to
manufacture a high-quality and functional knurling profile.
The factors listed below are crucial for process reliability, quality,
precision and surface quality and should be taken into account in
order to optimise the application.
Knurl width
Knurling wheel with chamfer
Base material for the
knurling wheel
Quality and
specification
of the knurling
wheel
Material properties
Hardness of the knurling wheel
Reworking
PVD coating
TENIFER ®
Run-out accuracy
Concentricity
Precision
Sharpness of tooth crest
Profile properties
Radius in tooth gullet
Flank angle
Tool properties
Plunge knurling
Type of knurling process
Type of
tool holder used
Form knurling
Feed knurling
Plunge / feed knurling
Cut knurling
Quality and
condition of the axle
pin / bearing bush
Stability / freedom
from vibration
Precision
Precision
Machine properties
Stability / freedom
from vibration
Hardness
Strength
Cutting values
Feed rate
Plunge depth
Properties of
the material to
be machined
Cooling / lubrication
Cutting speed
Clearance angle
Rough-turn diameter
Pitch / number of teeth
Quality of teeth
Material distortion
