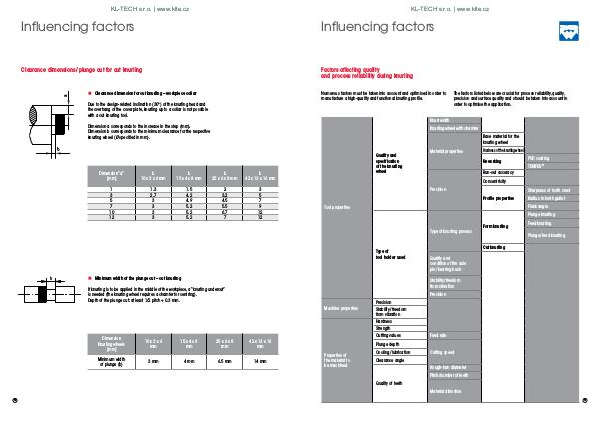

Influencing factors
Clearance dimensions / plunge cut for cut knurling
„ „ Clearance dimension for cut knurling – workpiece collar
Due to the design-related inclination
b (30°) of the knurling head and
the overhang of the cover plate, knurling up to a collar is not possible
with a cut knurling tool.
Dimension a corresponds to the increase in the step (mm).
Dimension b corresponds to the minimum clearance for the respective
knurling wheel (Ø specified in mm).
b
b
Dimension “a”
[mm] b
10 x 3 x 6 mm b
15 x 4 x 8 mm b
25 x 6 x 8 mm b
42 x 13 x 16 mm
1
3
5
7
10
12 1.3
2.7
3
3
3
3 1.5
4.2
4.9
5.2
5.2
5.2 2
3.2
4.5
5.5
6.7
7 3
5
7
9
12
12
„ „ Minimum width of the plunge cut – cut knurling
If knurling is to be applied in the middle of the workpiece, a “knurling undercut”
is needed (the knurling wheel requires a chamfer for centring).
Depth of the plunge cut: at least 1/2 pitch + 0.3 mm.
50
Dimension
Knurling wheels
[mm] 10 x 3 x 6
mm 15 x 4 x 8
mm 25 x 6 x 8
mm 42 x 13 x 16
mm
Minimum width
of plunge (b) 3 mm 4 mm 6.5 mm 14 mm
