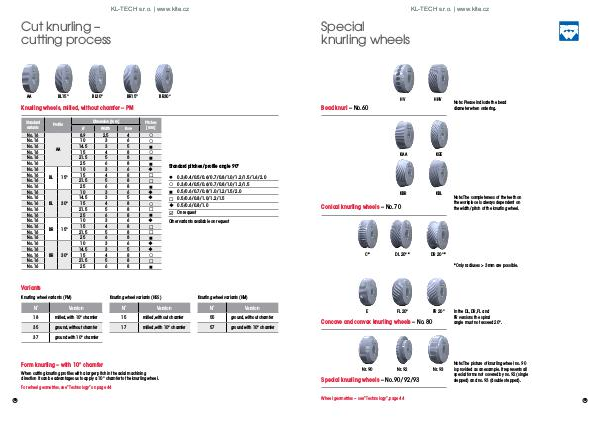

Special
knurling wheels
HV HHV
KAA KGE
KBR KBL
Bead knurl – No. 60
Conical knurling wheels – No. 70
C*
DL 20° *
Note: Please indicate the bead
diameter when ordering.
Note: The completeness of the teeth on
the workpiece is always dependent on
the width / pitch of the knurling wheel.
DR 20° *
* Only radiuses > 3 mm are possible.
E
FL 20°
FR 20°
Concave and convex knurling wheels – No. 80
Nr. 90
Nr. 92
Special knurling wheels – No. 90 / 92 / 93
Wheel geometries – see “Technology”, page 44
Nr. 93
In the DL, DR, FL and
FR versions the spiral
angle must not exceed 20°.
Note: The picture of knurling wheel no. 90
is provided as an example. It represents all
special forms not covered by no. 92 (single
stepped) and no. 93 (double stepped).
