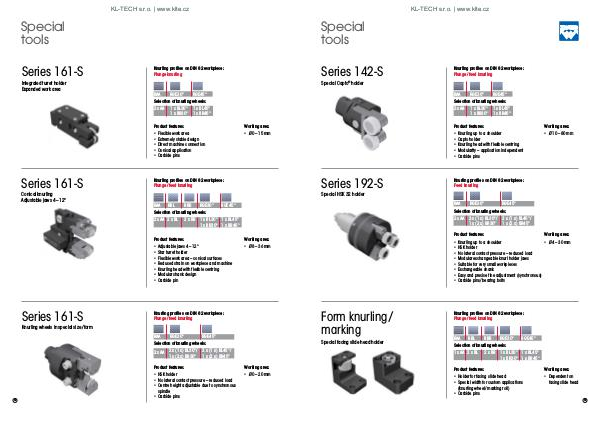

Series 142-S
Knurling profiles on DIN 82 workpiece:
Plunge / feed knurling
Special Capto ® holder
RAA
RGE30°
RGE45°
Selection of knurling wheels:
2 x AA
Series 192-S
1 x BL30°
1 x BR30°
1 x BL45°
1 x BR45°
Product features: Working area:
• Knurling up to a shoulder
• Capto holder
• Knurling head with flexible centring
• Modularity – application independent
• Carbide pins • Ø 10 – 80 mm
Knurling profiles on DIN 82 workpiece:
Feed knurling
Special HSK 32 holder
RAA
RGE30°
RGE45°
Selection of knurling wheels:
2 x AA 2 x (1 x) BL30°/
1 x (2 x) BR30°
2 x (1 x) BL45°/
1 x (2 x) BR45°
Working area:
Product features:
• Ø 4 – 30 mm
• Knurling up to a shoulder
• HSK holder
• No lateral contact pressure – reduced load
• Modular exchangeable knurl holder jaws
• Suitable for very small workpieces
• Exchangeable shank
• Easy and precise fine adjustment (synchronous)
• Carbide pins / bearing bolts
Form knurling / 
marking
Special facing slide head holder
Knurling profiles on DIN 82 workpiece:
Plunge / feed knurling
RAA
RBL
RBR
RGE30°
RGE45°
Selection of knurling wheels:
1 x AA 2 x BL
2 x BR
1 x BL30° 1 x BL45°
1 x BR30° 1 x BR45°
Product features: Working area:
• Holder for facing slide head
• Special width for custom applications
(knurling wheel / marking roll)
• Carbide pins • Dependent on
facing slide head
