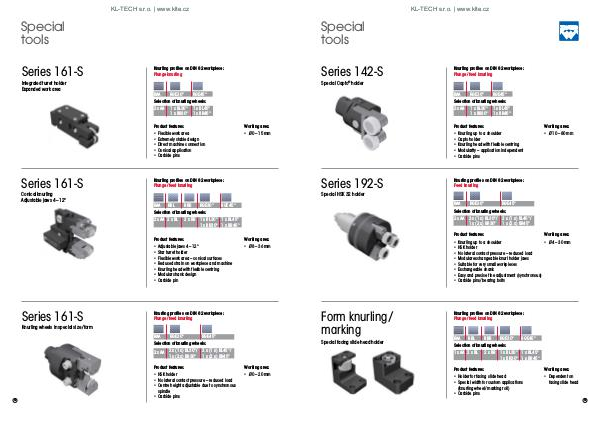

Special
tools
Series 161-S
Integrated turret holder
Expanded work area
Knurling profiles on DIN 82 workpiece:
Plunge knurling
RAA
RGE30°
RGE45°
Selection of knurling wheels:
2 x AA
Series 161-S
Conical knurling
Adjustable jaws 4 – 12°
1 x BL30°
1 x BR30°
1 x BL45°
1 x BR45°
Product features: Working area:
• Flexible work area
• Extremely stable design
• Direct machine connection
• Conical application
• Carbide pins • Ø 0 – 15 mm
Knurling profiles on DIN 82 workpiece:
Plunge / feed knurling
RAA
RBL
RBR
RGE30°
RGE45°
Selection of knurling wheels:
2 x AA 2 x BL
Series 161-S
2 x BR
1 x BL30° 1 x BL45°
1 x BR30° 1 x BR45°
Product features: Working area:
• Adjustable jaws 4 – 12°
• Star turret holder
• Flexible work area – conical surfaces
• Reduced strain on workpiece and machine
• Knurling head with flexible centring
• Modular shank design
• Carbide pin • Ø 8 – 36 mm
Knurling profiles on DIN 82 workpiece:
Plunge / feed knurling
Knurling wheels in special size / form
RAA
RGE30°
RGE45°
Selection of knurling wheels:
2 x AA 2 x (1 x) BL30°/
1 x (2 x) BR30°
32
2 x (1 x) BL45°/
1 x (2 x) BR45°
Product features: Working area:
• HSK holder
• No lateral contact pressure – reduced load
• Centre height adjustable due to synchronous
spindle
• Carbide pins • Ø 0 – 20 mm
