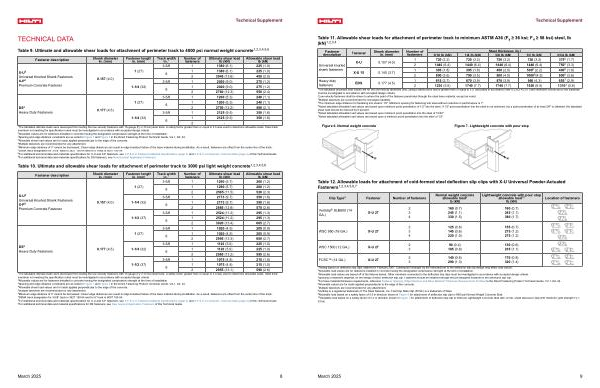

X-P & X-U Concrete Fasteners Tech Supplement March 2025 | Page 8

Technical Supplement

TECHNICAL DATA

Table 9 . Ultimate and allowable shear loads for attachment of perimeter track to 4000 psi normal weight concrete 1 , 2 , 3 , 4 , 5 , 6

Fastener description

X-U 8

Universal Knurled Shank Fasteners

X-P 8

Premium Concrete Fastener

DS 9

Heavy Duty Fasteners

Shank diameter in . ( mm )

0.157 ( 4.0 )

0.177 ( 4.5 )

Fastener length in . ( mm )

1 ( 27 )

1-1 / 4 ( 32 )

1 ( 27 )

6

1 1380 ( 6.1 ) 225 ( 1.0 ) 2 3045 ( 13.6 ) 450 ( 2.0 )

3-5 / 8 1 2020 ( 9.0 ) 275 ( 1.2 )

6

1 2020 ( 9.0 ) 275 ( 1.2 ) 2 2760 ( 12.3 ) 550 ( 2.4 )

3-5 / 8 1 1200 ( 5.3 ) 240 ( 1.1 )

6

1 1200 ( 5.3 ) 240 ( 1.1 ) 2 2750 ( 12.2 ) 480 ( 2.1 )

3-5 / 8 1 2125 ( 9.5 ) 350 ( 1.6 )

1-1 / 4 ( 32 ) 1 2125 ( 9.5 ) 350 ( 1.6 )

6 2 - - 1 The tabulated ultimate loads were developed from testing the low-velocity fasteners with 16-gauge ( Fy ≥ 33 ksi ) steel track . A safety factor greater than or equal to 5.0 was used to determine allowable loads . Steel track members not meeting the specification noted must be investigated in accordance with accepted design criteria 2 Allowable values are for fasteners installed in concrete having the designated compressive strength at the time of installation . 3 Spacing and edge distance constraints are as noted in Figure 1 and Figure 3 in the Direct Fastening Product Technical Guide , Vol . 1 , Ed . 24 . 4 Allowable shear load values are for loads applied perpendicular to the edge of the concrete . 5 Multiple fasteners are recommended for any attachment . 6 Minimum edge distance of 3 ” cannot be decreased . Closer edge distances can result in edge breakout failure of the base material during installation . As a result , fasteners are offset from the center line of the track . 7 SSMA track designation for 3-5 / 8 ” track is 362T 150-54 and for 6 ” track is 600T 150-54 . 8 For additional technical data and materials specifications for X-U and X-P fasteners , see X-P & X-U Fasteners Material Specifications ( page 3 ) and X-P & X-U Fasteners Technical Data ( page 4 ) of this Technical Guide 9 For additional technical data and materials specifications for DS fasteners , see New General Application Fasteners .

Table 10 . Ultimate and allowable shear loads for attachment of perimeter track to 3000 psi light weight concrete 1 , 2 , 3 , 4 , 5 , 6

Fastener description

X-U 8

Universal Knurled Shank Fasteners

X-P 8

Premium Concrete Fastener

DS 9

Heavy Duty Fasteners

Shank diameter in . ( mm )

0.157 ( 4.0 )

0.177 ( 4.5 )

Fastener length in . ( mm )

1 ( 27 )

1-1 / 4 ( 32 )

1-1 / 2 ( 37 )

1 ( 27 )

1-1 / 4 ( 32 )

6

1 1290 ( 5.7 ) 260 ( 1.2 ) 2 2585 ( 11.5 ) 520 ( 2.3 )

3-5 / 8 1 2173 ( 9.7 ) 350 ( 1.6 )

6

1 2173 ( 9.7 ) 350 ( 1.6 ) 2 2885 ( 12.8 ) 575 ( 2.6 )

3-5 / 8 1 2524 ( 11.2 ) 295 ( 1.3 )

6

1 2524 ( 11.2 ) 295 ( 1.3 ) 2 3020 ( 13.4 ) 605 ( 2.7 )

3-5 / 8 1 1020 ( 4.5 ) 205 ( 0.9 )

6

1 1020 ( 4.5 ) 205 ( 0.9 ) 2 2995 ( 13.3 ) 600 ( 2.7 )

3-5 / 8 1 1120 ( 5.0 ) 225 ( 1.0 )

6

1 1120 ( 5.0 ) 225 ( 1.0 ) 2 2965 ( 13.2 ) 595 ( 2.6 )

3-5 / 8 1 1075 ( 4.8 ) 215 ( 1.0 )

1-1 / 2 ( 37 ) 1 1075 ( 4.8 ) 215 ( 1.0 )

6 2 2955 ( 13.1 ) 590 ( 2.6 ) 1 The tabulated ultimate loads were developed from testing the low-velocity fasteners with 16 gauge ( Fy ≥ 33 ksi ) steel track . A safety factor greater than or equal to 5.0 was used to determine allowable loads . Steel track members not meeting the specification noted must be investigated in accordance with accepted design criteria 2 Allowable values are for fasteners installed in concrete having the designated compressive strength at the time of installation . 3 Spacing and edge distance constraints are as noted in Figure 1 and Figure 3 in the Direct Fastening Product Technical Guide , Vol . 1 , Ed . 24 . 4 Allowable shear load values are for loads applied perpendicular to the edge of the concrete . 5 Multiple fasteners are recommended for any attachment . 6 Minimum edge distance of 3 ” cannot be decreased . Closer edge distances can result in edge breakout failure of the base material during installation . As a result , fasteners are offset from the center line of the track . 7 SSMA track designation for 3-5 / 8 ” track is 362T 150-54 and for 6 ” track is 600T 150-54 . 8 For additional technical data and materials specifications for X-U and X-P fasteners , see X-P & X-U Fasteners Material Specifications ( page 3 ) and X-P & X-U Fasteners Technical Data ( page 4 ) of this Technical Guide 9 For additional technical data and material specifications for DS fasteners , see New General Application Fasteners of this Technical Guide .

March 2025 8
