Torque Wrenches
MADE IN USA

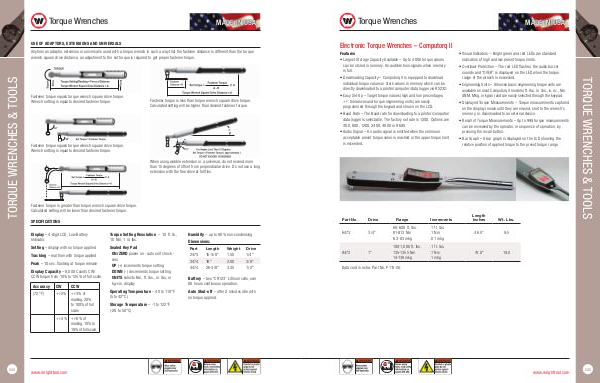

Electronic Torque Wrenches – Computorq II
Features
• • Largest Storage Capacity Available – Up to 4000 torque values
can be stored in memory. An audible tone signals when memory
is full.
• • Easy Set-Up – Target torque values (high and low percentages,
+/- tolerances and torque engineering units) are easily
programmed through the keypad and shown on the LCD.
• • Baud Rate – The Baud rate for downloading to a printer/computer/
data logger is selectable. The factory set rate is 1200. Options are
300, 600, 1200, 2400, 4800 or 9600.
• • Audio Signal – An audio signal is emitted when the minimum
acceptable preset torque value is reached or the upper torque limit
is exceeded.
Part No. Drive
Range
6473 3/4" 60-600 ft. lbs.
81-813 Nm
8.3-83 mkg
8473 1" 100-1,000 ft. lbs.
135-1355 Nm
14-138 mkg
• • Overload-Protection – The red LED flashes, the audio buzzer
sounds and “OVER” is displayed on the LED when the torque
range of the wrench is exceeded.
• • Engineering Units – All seven basic engineering torque units are
available on most Computorq II models (ft. lbs., in. lbs., in. oz., Nm,
dNM, Mkg. or kgcm) and are easily selected through the keypad.
• • Displayed Torque Measurements – Torque measurements captured
on the display remain until they are erased, sent to the wrench’s
memory, or downloaded to an external device.
• • Recall of Torque Measurements – Up to 999 torque measurements
can be reviewed by the operator, in sequence of operation, by
pressing the recall button.
• • Bar Graph – A bar graph is displayed on the LCD showing the
relative position of applied torque to the preset torque range.
Length
Inches Wt. Lbs.
.1 ft. lbs.
.1 Nm
.01 mkg 46.5" 9.5
.1 ft. lbs.
.1 Nm
.1 mkg 74.0" 19.0
Increments
• • Downloading Capacity – Computorq II is equipped to download
individual torque values or store values in memory which can be
directly downloaded to a printer/computer/data logger via RS232.
• • Visual Indicators – Bright green and red LEDs are standard
indicators of high and low preset torque limits.
Data cord is extra. Part No. P113-50.
www.wrighttool.com
245
