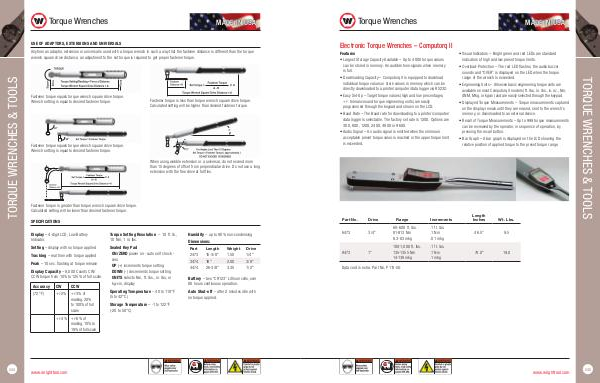

Torque Wrenches
MADE IN USA
USE OF ADAPTORS, EXTENSIONS AND UNIVERSALS
Anytime an adaptor, extension or universal is used with a torque wrench in such a way that the fastener distance is different than the torque
wrench square drive distance, an adjustment to the set torque is required to get proper fastener torque.
Fastener torque equals torque wrench square drive torque.
Wrench setting is equal to desired fastener torque.
Fastener torque equals torque wrench square drive torque.
Wrench setting is equal to desired fastener torque.
When using wobble extension or a universal, do not exceed more
than 15 degrees of offset from perpendicular drive. Do not use a long
extension with the flex-drive at full flex.
Fastener torque is greater than torque wrench square drive torque.
Calculated setting will be lower than desired fastener torque.
SPECIFICATIONS
Display – 4-digit LCD, Low Battery
Indicator. Torque Setting Resolution – 1.0 ft. lb.,
1.0 Nm, 1 in. lbs. Setting – display with no torque applied Sealed Key Pad
ON/ZERO power on - auto self check -
zero
UP (+) increments torque setting
DOWN (-) decrements torque setting
UNITS selects Nm, ft. lbs., in. lbs., or
kg-cm, display Battery – two “CR123” Lithium cells, over
80 hours continuous operation.
Operating Temperature – 40 to 110°F
(5 to 42°C) Auto Shut-off – after 2 minutes idle with
no torque applied.
Tracking – real time with torque applied
Peak – 10 sec. flashing at torque release
Display Capacity – 8,000 Counts CW/
CCW torque from 10% to 125% of full scale.
Accuracy CW CCW
(72 °F) +/-2% +/-3% of
reading, 20%
to 100% of full
scale
+/-4% +/-6% of
reading, 10% to
19% of full scale
244
Fastener torque is less than torque wrench square drive torque.
Calculated setting will be higher than desired fastener torque.
www.wrighttool.com
Storage Temperature – -1 to 122°F
(-20 to 50°C)
Humidity – up to 90% non-condensing
Dimensions:
Part Length Weight Drive
2473
3474
4474 15-3/8"
18"
26-3/8" 1.50
2.00
3.35 1/4"
3/8"
1/2"
