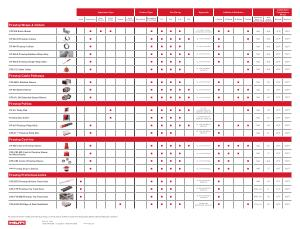

Application Type Product Type Fire Rating Approvals Additional Attributes |
Application Temperature Range |
Joints |
Penetrations |
Endo- Thermic |
Outlet Boxes |
Façade |
Steel Protection |
Wet-applied |
Dry-applied / Pre-formed |
1-Hr 2-Hr 3-Hr 4-Hr L-Rating W-Rating M-Rating T-Rating |
Movement( up to %) ASTM E1399 |
STC( up to) ASTM E90 |
Minimum |
Maximum |
CFP-ES Endo-Shield ■ ■ ■ ■ ■ ■ ■
UL 1479, UL 1489, ASTM E1725, ASTM E84
■ ■ ■ N / A N / A(-4 ° F) 122 ° F
CP 643 N Firestop Collars ■ ■ ■ ■ ■ ■ UL 1479, ASTM G21 ■ ■ N / A N / A 23 ° F 122 ° F
CP
644 Firestop Collars ■ ■ ■ ■ ■ UL 1479, ASTM G21 ■ N / A N / A 23 ° F 122 ° F
CP
648 E Firestop Endless Wrap Strip ■ ■ ■ ■ ■ ■ UL 1479, ASTM G21 ■ ■ N / A N / A 23 ° F 122 ° F
CP
648 S Firestop Single Wrap Strip ■ ■ ■ ■ ■ UL 1479, ASTM G21 ■ ■ N / A N / A 23 ° F 122 ° F
CFS-CC
Cable Collar ■ ■ ■ ■ ■
UL 1479, ASTM E84, ASTM G21
■ N / A N / A 40 ° F 104 ° F
Firestop Cable Pathways
CFS-MSL
Modular Sleeve ■ ■ ■ ■ ■ UL 1479, ASTM G21 ■ ■ N / A 66 23 ° F 122 ° F
CP
653 Speed Sleeve ■ ■ ■ ■ ■ ■ UL 1479, ASTM G21 ■ ■ ■ N / A 46 23 ° F 122 ° F
CFS-SL GA Extended Speed Sleeve ■ ■ ■ ■ ■ ■ UL 1479, ASTM G21 ■ ■ ■ N / A 46 23 ° F 122 ° F
Firestop Putties
CP
617 Putty Pad ■ ■ ■ ■ ■ ■
UL 1479, UL 263 / ASTM E119, ASTM E84, ASTM G21
■ N / A 59 32 ° F 104 ° F
Firestop Box Insert ■ ■ ■ ■ ■
UL 263 / ASTM E119, ASTM E84, ASTM G21 N / A 53 40 ° F 104 ° F
CP
618 Firestop Putty Stick ■ ■ ■ ■ ■ ■
CFS-D
1 " Firestop Putty Disc ■ ■ ■ ■
UL 1479, ASTM E84, ASTM G21
■ ■ ■ N / A 49 32 ° F 104 ° F
UL 1479, ASTM E84, |
|
|
|
|
ASTM G21
■ N / A
|
62 |
32 ° F |
104 ° F |
Firestop Cast-Ins
CP
680 Cast-in Firestop Sleeve ■ ■ ■ ■ ■ ■ UL 1479, ASTM G21 ■ ■ ■ ■ N / A 56 23 ° F 122 ° F
CFS-CID MD Cast-In Firestop Sleeve for Metal Decks
■ ■ ■ ■ ■ UL 1479, ASTM G21 ■ ■ ■ N / A 51 23 ° F 122 ° F
CFS-CID
Cast-in Firestop Sleeve ■ ■ ■ ■ ■ UL 1479, ASTM G21 ■ ■ ■ N / A N / A 23 ° F 122 ° F
DID Firestop Drop in Device ■ ■ ■ ■ ■ UL 1479, ASTM G21 ■ ■ ■ N / A 57 23 ° F 122 ° F
Firestop Preformed Joints
CFS-BTS
Firestop Bottom Track Seal ■ ■ ■ ■
UL 2079, ASTM E84, ASTM G21
■ N / A 63 14 ° F 122 ° F
CFS-TTS Firestop Top Track Seal ■ ■ ■ ■
UL 2079, ASTM E84, ASTM G21
■ 50 %(+/-) 61 14 ° F 122 ° F
CFS-TTS MD Firestop Top Track Seal ■ ■ ■ ■
UL 2079, ASTM E84, ASTM G21
■ 86 %(+/-) 52 14 ° F 122 ° F
CFS-EOS QS Edge of Slab QuickSeal ■ ■ ■ ■ ■
ASTM E2307, ASTM D6904, ASTM G21
■ ■ 11 %(+/-) 52 23 ° F 122 ° F
All products should be installed per an official UL listing. Check individual UL systems for specific fire ratings and / or additional attribute ratings per application.
Hilti, Inc.( U. S.) 1-800-879-8000 | en español 1-800-879-5000 www. hilti. com
