EXPLODED SCHEME
Vertical circulation of the building
Housing
Tram to the coast line | Elevated level
Groundfloor
Circulation between transport networks
Tram to the Station Metro L4
Train

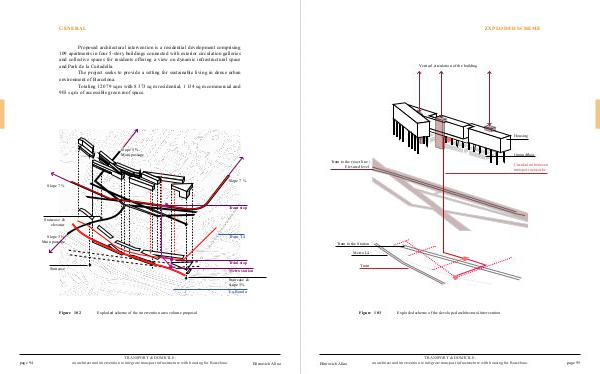

Figure 103 Exploded scheme of the developed architectural intervention
Efimovich Alina
TRANSPORT & DOMICILE: an architectural intervention to integrate transport infrastructure with housing for Barcelona. page 95
