Floor finish
Floated reinforced concrete slab 50 mm
Foam layer
Mineral wool insulation with neoprene mountains
Pre fabricated hollow core slab 200 mm
Air gap
Sound absorbing wooden perforated panel
300
Acoustic
edge strip

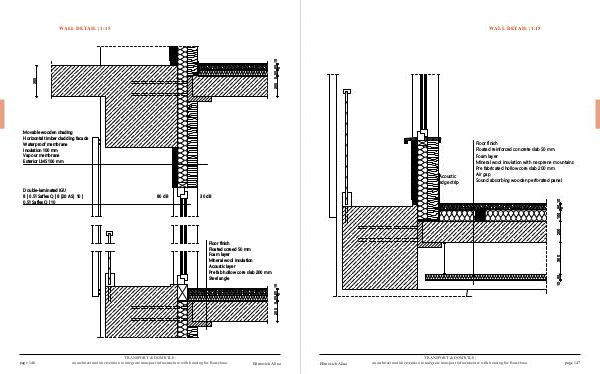

WALL DETAIL | 1:15
