TRANSPORT & DOMICILE June, 2017 | Page 146

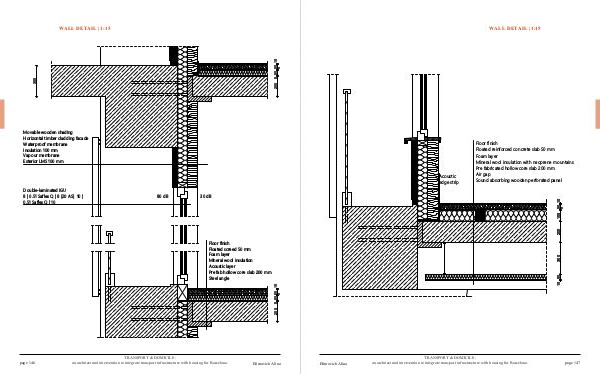

WALL DETAIL | 1:15
Movable wooden shading
Horizontal timber cladding facade
Waterproof membrane
Insulation 100 mm
Vapour membrane
Exterior LMS 100 mm
Double-laminated IGU
8 | 0.51 Saflex Q | 8 [20 AS] 10 |
0.51 Saflex Q | 10
80 dB
30 dB
Floor finish
Floated screed 50 mm
Foam layer
Mineral wool insulation
Acoustic layer
Pre fab hollow core slab 200 mm
Steel angle
page 146
TRANSPORT & DOMICILE:
an architectural intervention to integrate transport infrastructure with housing for Barcelona.
Efimovich Alina
