AUTO LOCKSMITHS
11 |
|
|
|
12 |
13 |
14 |

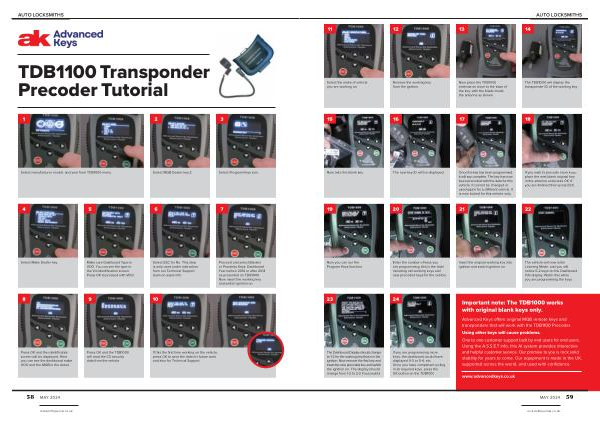

Select the make of vehicle you are working on . |
Remove the working key from the ignition . |
Now place the TDB1000 antenna as close to the base of the key , with the blade inside the antenna as shown . |
The TDB1000 will display the transponder ID of the working key . |
15 |
|
|
|
16 |
|
|
17 |
|
18 |
Now take the blank key . |
The new key ID will be displayed . |
Once the key has been programmed , it will say complete . The key has now been precoded with the data for this vehicle . It cannot be changed or used again for a different vehicle . It is now locked for this vehicle only . |
If you wish to precode more keys , place the next blank original key in the antenna and press OK . If you are finished then press ESC .
19 |
|
|
|
20 |
|
|
21 |
|
22 |
Now you can run the Program Keys function . |
Enter the number of keys you are programming , this is the total including old working keys and new precoded keys for the vehicle . |
Insert the original working key into ignition and switch ignition on . |
The vehicle will now enter Learning Mode , and you will notice 0-2 keys on the Dashboard Info display . Watch this while you are programming the keys . |
23
The Dashboard Display should change to 1-2 for the working key that is in the ignition . Now remove the first key and insert the new precoded key and switch the ignition on . The display should change from 1-2 to 2-2 if successful .
24
If you are programming more keys , the dashboard would have displayed 0-3 or 0-4 , etc . Once you have completed cycling in all required keys , press the OK button on the TDB1000 .
Important note : The TDB1000 works with original blank keys only .
Advanced Keys offers original MQB remote keys and transponders that will work with the TDB1100 Precoder . Using other keys will cause problems . One to one customer support built by end users for end users . Using the A . S . S . E . T info , this AI system provides interactive and helpful customer service . Our promise to you is rock solid stability for years to come . Our equipment is made in the UK , supported across the world , and used with confidence .
