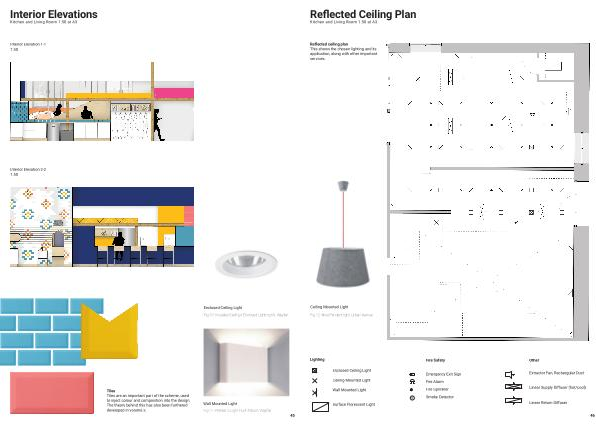

Reflected Ceiling Plan
Kitchen and Living Room 1:50 at A3
Reflected ceiling plan
This shows the chosen lighting and its
application, along with other important
services.
Ceiling Mounted Light
Fig 12 -Alice Pendant light, Urban Avenue
Lighting
Fire Safety
Other
Enclosed Ceiling Light
Ceiling Mounted Light
Wall Mounted Light
Emergency Exit Sign
Fire Alarm
Fire Sprinkler
Extractor Fan, Rectangular Duct
Linear Supply Diffuser (hot/cool)
Surface Florescent Light
S
Smoke Detector
Linear Return Diffuser
46
