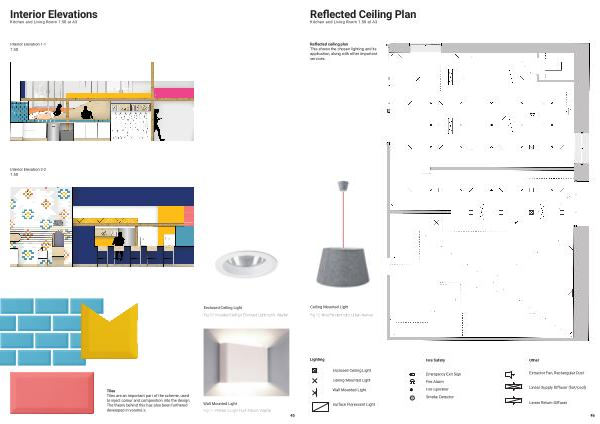

Interior Elevations
Kitchen and Living Room 1:50 at A3
Interior Elevation 1-1
1:50
Interior Elevation 2-2
1:50
Enclosed Ceiling Light
Fig 10 -Insulated Ceiling t Enclosed Lighting Kit, Wayfair.
Tiles
Tiles are an important part of the scheme, used
to inject colour and composition into the design.
The theory behind this has also been furthered
developed in volume 3.
Wall Mounted Light
Fig 11 -Petekar 2-Light Flush Mount, Wayfair.
45
