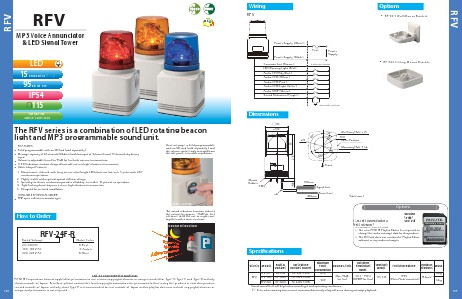

Wiring Options RF-001: Wall Mount Bracket RFV RFV Power Supply (White) Fuse Power Supply Power Supply (Black) Common Line (Brown) LED Warning Light (Red) Audio CH1 (Sky Blue) RF-002 Ceiling Mount Bracket External Contact Audio CH2 (Yellow) Audio CH3 (Pink) Audio CH4 (Light Green) Audio STOP (Green) Sound Reduction (Purple) NPN Open Collector Dimensions 115 ø100 0° 36° 12 95 ø70 Wire Entry Hole: ø15 R41 Cover Position Mounting Hole: 3-ø6 215 120° Front 14.8 Mount Rubber 3-M5 W ø8 350mm Signal Line Power Line 400mm (Unit: mm) Options SD Card (2 GB) SDV-2GP PATLITE Playlist Editor 2 (Free Version) (OS: Windows® 2000/XP/Vista) > The new PATLITE Playlist Editor 2 is required to change the audio message data for this product. > The SD Card does not contain the Playlist Editor software or any audio messages. Specifications Series Model Rated Voltage Operating Voltage Range Maximum Power Sound Level Consumption Operating Temperature Range Flashes per Minute RFV-24 DC 24V DC 24V ±10% 18 W Max. 95dB -10oC - +50oC 115 ±15 RFV-100 AC 100V AC 100V ±10% (at 1m) (85%RH or less) 16W RFV-220 AC 220V AC 220V ±10% Actual sound level will depend on sound type and operating conditions. ※)Even when starting two or more units simultaneously, a lag will occur during message playback. RFV Protection Rating Vibration Mass Resistance 1.0kg IP54 19.6m/s2 (When Flush-mounted) 1.2kg 189
