MP3
Model BSV
Model BDV
Model BKV
Model LKEH
Model RFV
Model FV-127JP

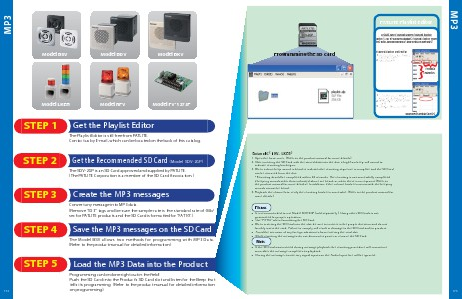

STEP 1
Get the Playlist Editor
The Playlist Editor is still free from PATLITE.
Contact us by E-mail, which can be located on the back of this catalog.
STEP 2
Get the Recommended SD Card (Model SDV-2GP)
The SDV-2GP is an SD Card approved and supplied by PATLITE.
(The PATLITE Corporation is a member of the SD Card Association.)
STEP 3
Create the MP3 messages
Convert any message into MP3 data.
(Remove "ID3" tags and be sure the sample rate is the standard rate of 64b/
sec for PATLITE products and the SD Card is formatted for "FAT16".)
STEP 4
Save the MP3 messages on the SD Card
The Model BSV allows two methods for programming with MP3 Data.
(Refer to the product manual for detailed information)
STEP 5
172
Load the MP3 Data into the Product
Programming can be done right out in the field!
Push the SD Card into the Product's SD Card slot and listen for the Beep that
tells its programming (Refer to the product manual for detailed information
on programming).
