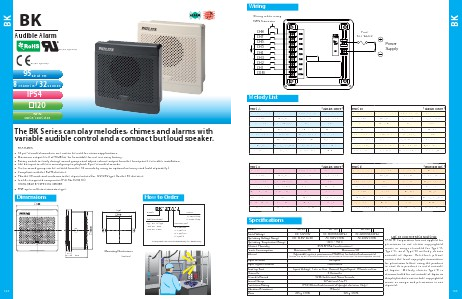

BK
Wiring
Wiring when using
NPN Transistor
CH8
CH7
CH6
CH5
CH4
CH3
CH2
CH1
COM
Fuse
See Table2
Power
Supply
Melody List
Type A
Beep (slow intermittent)
(Japan Only)
Type D
Stutter (rapid intermittent)
Bell (clear high-pitch)
Yelp (rapid siren)
Beep (slow intermittent)
(Japan Only)
Stutter (rapid intermittent)
Bell (clear high-pitch)
Yelp (rapid siren)
Rapid Hi-Lo
Melody Chime
Synthesized Piano
Synthesized Bell
Rapid Hi-Lo
Melody Chime
Synthesized Piano
Synthesized Bell
Stutter + Bell
Synthesized Melody Chime
Chime
Call Sign
Runner
Mamotte Agetai
Chime
Call Sign
Fur Elise
Maiden’s Prayer
Bach Minuet in Gmaj
Annie Laurie
Iribiao Kikinagara
September
Doyoubino Koibito
Akino Kehai
London Bridge is falling down
Hol-di-ri-Dia
Mary had a little Lamb
Camptown Races
Saafu Tengoku Sukii Tengoku
Iro White-blend
Happy Birthday
Hi Ho
Cuckoo Song
Village Blacksmith
On the Bridge of Avignon
Daydream Believer
I’ve been working on the Railroad
The Bear Song
Toys Go “Cha-cha-cha”
Konnako Irukana
Amaryllis
Mozart Symphony No. 40
Quiet Lakeside
Ich bin ein Musikante
Schubert’s Lullaby
Rudolph the red-nosed Reindeer
She Wore a Yellow Ribbon
My Darling, Clementine
Spanish Romance
Katyusha
Grandfather’s Clock
Ave Maria
Yellow Rose of Texas
Yankee Doodle
When the Saints Go Marching In
Londonderry Air
Stutter (rapid intermittent)
Bell (clear high-pitch)
Yelp (rapid siren)
Beep (slow intermittent)
Stutter + Bell
Inverted Reveille
Annie Laurie
Rapid Hi-Lo
Melody Chime
Synthesized Piano
Synthesized Bell
Stutter (rapid intermittent)
Melody Chime
Galactic Motor
London Bridge is falling down
Stutter + Bell
Synthesized Melody Chime
Chime
Call Sign
Bell (clear high-pitch)
Chime
Ringing Phone
Mary had a little Lamb
Can’t take my eyes off of you
Top of the World
The Entertainer
Amazing Grace
Yelp (rapid siren)
Call Sign
Two Tone
Camptown Races
Amairono Kamino Otome
Les Champs-Elysees
Canon
Rara Sunshine
Rapid Hi-Lo
Train Ride
Alarm Clock
Amaryllis
Type C
Beep (slow intermittent)
(Japan Only)
Type E
(Worldwide)
Uchuusenkan Yamamoto
Oshiete
Makenaide
Gonna Fly Now (Theme from “Rocky”)
Melody Chime
Galloping Hi-Lo
Ringing Hi-Lo
Mozart Symphony No. 40
I don’t Wanna Miss a Thing
Yozorano Mukou
Aiwa Katsu
Haruyo Koi
Synthesized Piano
Alien Chatter
Fur Elise
Ave Maria
Gattsudaze
Odoru Ponpokorin
Imasugu Kisu Mi
Truth
Synthesized Bell
Falling Crystals
Bach Minuet in Gmaj
Grandfather’s Clock
Specifications
Model
Rated Voltage
Operating Voltage Range
Operating Temperature Range
Relative Humidity
Power Consumption
Volume
Input Method
Input Signal Duration
Boot-up Time
Channels
Recorded Sound
Sound Group
Protection Rating
Vibration Resistance
Mass
BK-24
DC 12V-24V
DC 10.8V- 26.4V
BK-100
BK-220
AC 100V (50/60Hz)
AC 220V (50/60Hz)
AC 100V ±10%
AC 200V ±10%
-200C - +500C
85% RH (No Condensation)
Maximum 4W
Maximum 5W
Adjustable up to a maximum of 90dB (at 1m) when flushmounted.
(Volume may be less, depending on surrounding environment and playback sound)
Bit Input
Continuous
Input Voltage: 1 sec. or less Channel Signal Input: 170msec or less
4 Channels
32 Melodies and Alarm Sounds
16 Patterns (A to P)
IP54 (When flush-mounted, Upright direction Only)
19.6m/s2
205 g ±10%
325 g ±10%
Use of Copyrighted Material
PATLITE Corporation has not applied for
permission to use certain copyrighted
music or songs recorded for Type-A,
Type -C, and Type -D melody char ts
outside of Japan. Therefore, please
contact the local copyright association
for permission before using the product
in case this product is used outside
of Japan. Melody char ts Type -E is
recommended for use outside of Japan as
this playlist does not include copyrighted
music or songs, and permission is not
required.
165
