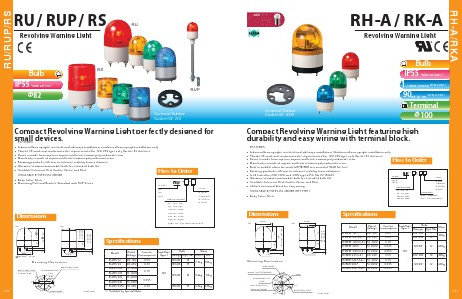

RU/RUP/RS
RU/ RUP/ RS
RU
Revolving Warning Light
RS
Bulb
IP55 (with SZ-210)
Φ82
RUP
Optional Rubber
Gasket SZ-210
Compact Revolving Warning Light perfectly designed for
small devices.
FEATURES
•
•
•
•
•
•
•
Indoors allows upright, inverted, and sideways installation; outdoors allows upright installation only.
Has the CE mark and conforms to the requirements (for 12V, 24V type only) for the EC directive.
Dome is made from superior impact and heat resistant polycarbonate resin.
Main body is made of impact and heat-resistant polycarbonate resin.
Rotating parabolic reflector to enhance visibility from a distance.
Vibration-resistant automobile bulb for extended bulb life.
Available Colors are Red, Amber, Green, and Blue.
AVAILABLE BY SPECIAL ORDER
• Body Color: Silver
• Mounting Pole and Bracket: Standard with RUP Series.
How to Order
Model
RU
RS
RUP
Color
R: Red
Y: Amber
G: Green
B: Blue
Rated Voltage
12 : DC 12V
24 : DC 24V
100: AC 100V
120: AC 120V
220: AC 220V
240: AC 240V
24AC: AC 24V (Special Order)
Dimensions
RU
3-M4
φ82
121 (AC Type)
123 (DC Type)
13
71 (AC Type)
73 (DC Type)
13
43
120 ( 122)
43
70 ( 72)
RS
3-M4
ø82
RU/RUP-12, 24
Mounting Dimensions
Wire Entry Hole
Mounting Hole
3- ø5
ø50
22
32
10
12
0°
Wire Entry Hole
(For SZ-210)
6
130
RU - -
Nameplate
(Unit: mm)
Specifications
Bulb
Rated
Current
Flash Rate
Voltage Consumption
(fpm) Ratings Repl. No.
RU/RS-12
DC 12V
0.5A
12V 6W
18
RU/RS-24
DC 24V
0.3A
24V 6W
19
RU/RS-100 AC 100V
0.1A
RU/RS-120 AC 120V
120
12V 6W
18
RU/RS-220 AC 220V
0.05A
RU/RS-
