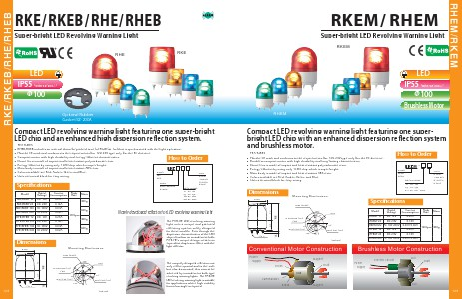

RKE/RKEB/RHE/RHEB
RKE/ RKEB/ RHE/ RHEB
Super-bright LED Revolving Warning Light
RKE
RHE
LED
IP55 (with SZ-200A)
Φ100
Optional Rubber
Gasket SZ-200A
Compact LED revolving warning light featuring one super-bright
LED chip and an enhanced high dispersion reflection system.
•
•
•
•
•
•
•
•
FEATURES
RHEB/RKEB includes an internal alarm (hi-pitched tone) of 90dB (at 1m) that is synchronized with the light operation.
Has the CE mark and conforms to the requirements (for 12V, 24V type only) for the EC directive.
Compact motor with high durability and energy-efficient characteristics.
Dome lens is made of impact and heat resistant polycarbonate resin.
Energy-efficient by using only 1 LED chip which is super-bright.
RKE Main body is made of impact and heat resistant ABS resin.
Model
Colors available are Red, Amber, Green, and Blue.
RKE
Uses a terminal block for easy wiring.
How to Order
Color
R: Red
Y: Amber
G: Green
B: Blue
RHE
Alarm
None: Without
B: With
Specifications
Model
RKE/RKEB-12
RKE/RKEB-24
RKE/RKEB-100
RKE/RKEB-200
RHE/RHEB-12
RHE/RHEB-24
RHE/RHEB-100
RHE/RHEB-200
Rated
Current
Flash
Voltage Consumption Rate
DC 12V
0.25A
DC 24V
0.16A
AC 100V
0.04A
AC 200V
0.02A
120 fpm
DC 12V
0.25A
DC 24V
0.16A
AC 100V
0.04A
AC 200V
0.02A
Mass
400g
600g
Newly developed reflector for LED revolving warning light
400g
600g
Dimensions
Mounting Dimensions
ø100
Rated Voltage
12 : DC 12V
24 : DC 24V
100: AC 100V
200: AC 200V
The PATLITE LED revolving warning
light uses a unique and patented
reflecting system, solely designed
for these models. Even though the
dispersion characteristics of the LED
chip is less than an incandescent bulb,
PATLITE’s unique design creates an
equivalent dispersion effect with the
light reflector.
Nameplate
49
148
92
120°
12°
128
Mounting Hole
3-ø6
70°
Wire Exit Hole
16
3-M5
φ70
25°
R14
R45
Wire Exit Hole
120°
(Unit: mm)
The uniquely designed reflectors not
only reflect upward and to the side,
but also downward; this cannot be
achieved by incandescent bulb type
revolving warning lights. The PATLITE
LED revolving warning light is suitable
for applications where high visibility
from a low angle is required.
