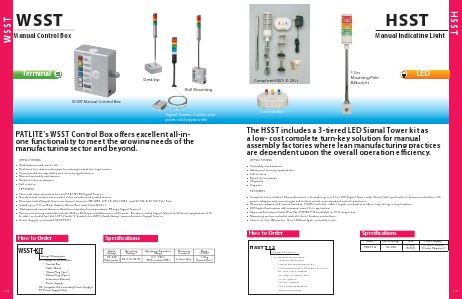

WSST
WSST
Manual Control Box
Terminal
Desktop
Wall Mounting
WSST Manual Control Box
Signal Towers, Cables and
poles sold sepearately
PATLITE's WSST Control Box offers excellent all-inone functionality to meet the growing needs of the
manufacturing sector and beyond.
•
•
•
•
•
•
•
•
•
•
•
•
•
APPLICATIONS
Workstations and work cells
Real-time line status indication for managers and line supervisors
Lean manufacturing, safety and security applications
Manual assembly operations
Retail check-out stations
Call centers
FEATURES
Universal manual control box for PATLITE LED Signal Towers.
Sturdy metal construction with 6 color-coordinated push buttons.
Recommended Signal Towers to choose from are ME; MES; LCE; LE; LES; LME-L; and SZ-60L & SZ-50L Pole Kits
Install up to 5 Tiers (Red, Amber, Green, Blue and Clear/White).
Add optional sound alarm or flash functionality (must purchase FB type Signal Towers).
Various mounting methods include Wall or Desktop installations or as Remote. Recommended Signal Towers for Remote applications (10
ft. cable included) are the LCE-U (with "L" bracket) or LME-U (with flange-mount bracket) Signal Towers.
Power Supply is included (WSST-KIT).
How to Order
WSST-KIT
114
Specifications
Rated
Operating
Voltage
Voltage
DC 24V
(Non-polar) DC 21.6 -26.4V
Package Description
KIT: Complete Kit includes
- Control Box
- Cable Gland
- 16mm Plug (1pc)
- 22mm Plug (2 pcs)
- Instruction Manual
- Power Supply
CB: Complete Kit (excluding Power Supply)
PS: Power Supply Only
Operating Teperature
Range
00C- +400C
(RH less than 90%)
Mounting
Location
Indoor Only
Mass
(±10%)
1.11kg
(Switch Box)
