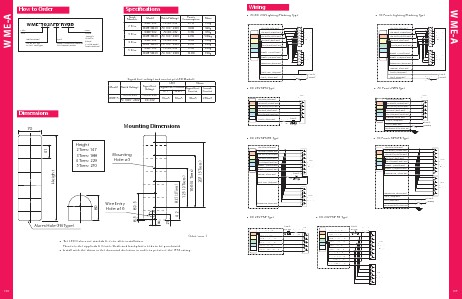

WME-A
How to Order
Specifications
Stack
Number
WME-402AFB-RYGB
2 Tiers
Color
R: Red
Y: Amber
G: Green
Type
B: Blue
Blank: Continuous Lighting C: Clear/White
FB: Flashing / Alarm
(Top to bottom)
Tiers
2~5
Rated Voltage
02: AC/DC 24V
M2: AC 100~240V
3 Tiers
4 Tiers
5 Tiers
Model
WME-202
WME-2M2A
WME-302
WME-3M2A
WME-402
WME-4M2A
WME-502
WME-5M2A
Power
Consumption
2.7W
4.6W
3.3W
6.0W
4.4W
8.0W
5.5W
10.0W
Rated Voltage
AC/DC 24V
AC 100 - 240V
AC/DC 24V
AC 100 - 240V
AC/DC 24V
AC 100 - 240V
AC/DC 24V
AC 100 - 240V
Mass
390g
460g
470g
540kg
550g
620g
630g
700g
Signal Line voltage and current per LED Module
Model
Rated Voltage
WME-A
AC/DC 24V
AC 100V - 240V
LED
Alarm
Signal Line Current Signal Line Inrush
Current
Current
R, Y
G, B, C
Signal Line
Voltage
AC/DC 24V
DC 24V
35mA
50mA
40mA
250mA
Dimensions
166 (4 Tiers)
83.5 (2 Tiers)
8
21
Alarm Hole (FB Type)
42
83.5
8.5
80
Wire Entry
Hole: ø16
125 (3 Tiers)
Mounting
Hole: ø5
Height
41
Height
2 Tiers: 147
3 Tiers: 188
4 Tiers: 229
5 Tiers: 270
207 (5 Tiers)
Mounting Dimensions
70
(Unit: mm)
• The LED Colors are stackable, even after installation.
However, the applicable Center Shaft and backplate needs to be purchased.
• Install with the alarm in the downard direction in order to preserve the IP54 rating.
108
