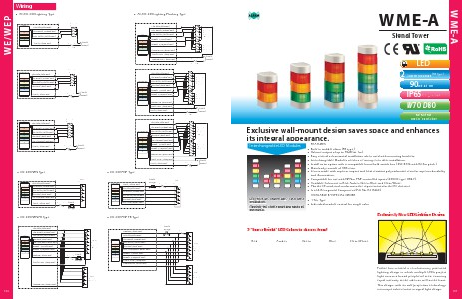

Signal Tower
WME-A
WME-A
LED
2 Alarm Sounds (FB Type)
90dB at 1m
IP65
W70 D80
(FB Type:IP54)
NPN/PNP
Open-collector
Exclusive wall-mount design saves space and enhances
its integral appearance.
Interchangeable LED Modules
•
•
•
•
•
•
•
•
•
•
•
LED Tiers are changeable, even after
installation.
However, the Center Shaft also has to be
purchased.
•
•
FEATURES
Built-in audible alarm (FB type)
Volume output of up to 90dB (at 1m).
Easy vertical or horizontal installation when used with mounting brackets.
Interchangeable Modules need no re-wiring, even after installation.
Install as an option with a compatible household switch box (JISC 8336 with 82.5m pitch).
Main body is made of ABS resin.
Lens is made with superior impact and heat resistant polycarbonate resin for superior durability
and illumination.
Compatible for use with NPN or PNP controlled inputs (24V DC type ONLY).
Available Colors are in Red, Amber, Green, Blue, and Clear/White.
Has the CE mark and conforms to the requirements for the EC directive.
Is a UL Recognized Component (File No. E215660).
AVAILABLE BY SPECIAL ORDER
1 Tier Type
Individual module control for single color
Exclusively New LED Lighting Design
5 "Super Bright" LED Colors to choose from!
Red
Amber
Green
Blue
Clear/White
Patlite has created a revolutionary patented
lighting design in which multiple LEDs project
light across a broad peripheral area, ensuring
equal intensity at the sides as well as the front.
This design, with its side-projection technology,
is a unique achievement in signal light design.
107
