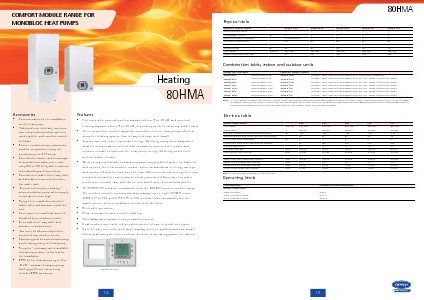

Comfort Module Range for
Monobloc Heat Pumps
Heating
80HMA
Accessories
• Communication kit for installation
on the heat pump
• Additional user interface, monitors
two independent comfort zones or
used together with comfort module
interface
• Remote outdoor sensor maximises
comfort compared to using the
condensing unit OAT sensor
• Domestic hot water tank for storage
of domestic hot water, one or two
coils, 200 or 300 litres, with or without
thermal solar panel connection
• Domestic hot-water three-way valve
and actuator to connect domestic
hot water tank
• Thermal cut-out, floor heating stops circulation pump when supply
temperature is too high
• Piping kit to install domestic hotwater valve and actuator inside the
unit.
• Cover panel to install two-zone kit
detached from comfort module.
• Kit to add three-way valve and
actuator in second zone
• Two-zone kit allows independent
control of two comfort zones
• Swimming pool kit controls swimming
pool heating, using the heat pump
• Pump kit - necessary when available
heat pump pressure is too low for
the installation
• BPHE kit for heat pumps up to 8 or
16 kW - separate heat pump loop
(with glycol) from indoor loop;
includes BPHE and pump
Features
• Five sizes with nominal cooling capacities from 4 to 20 kW and nominal
heating capacities from 4 to 20 kW, depending on the heat pump model used.
• The new comfort module range for monobloc inverter heat pumps offers a
complete heating system that is easy to design and install.
• System controls ensure optimised energy efficiency, using auto-adaptative
weather compensation control that constantly monitors the indoor and
outdoor c limate to optimise the heat pump energy efficiency and deliver
perfect indoor climate.
• With its improved aesthetics and compactness, combined with new features
and options, the new comfort module sets new standards in energy savings
and comfort. Using the two-zone kit, two different terminal unit types or two
independent comfort zones can be closely monitored. Domestic hot water
production is made easy and can be interfaced with thermal solar panels.
• All 30AWH-HC sizes are compatible with the 80HMA comfort module range.
The comfort module controls can also manage up to eight 30AWH units.
30RQ 017 to 021 and 61AF 014 to 019 units are also compatible, but the
water volume of this installation needs to be checked.
• Reversible operation.
• Electric booster heater or boiler back-up.
• Auto-adaptative weather compensation control.
• Dual comfort zone with independent control of two terminal unit types.
• User-friendly controller with large display, intuitive symbols and two simple
buttons, allowing the user to select the desired operating parameter values.
Operator interface
