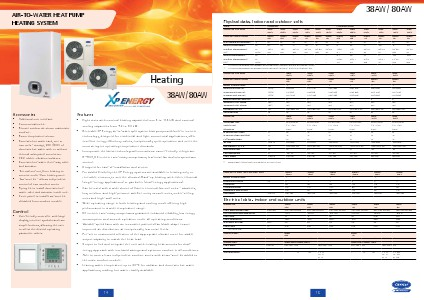

AIR-TO-WATER HEAT PUMP
HEATING SYSTEM
Heating
38AW/ 80AW
Accessories
• Additional user interface.
• Communication kit.
• Remote outdoor air sensor maximises
comfort.
• Room temperature sensor.
• Domestic hot water tank, one or
two coils - storage, 200 l/300 l of
domestic hot water with or without
thermal solar panel connection.
• CDU rubber vibration isolators.
• Domestic hot-water three-way valve
and actuator.
• Thermal cut-out, floor heating to
connect under-floor heating zone.
• Two-zone kit - allows independent
control of two comfort zones
• Piping kit to install domestic hotwater valve and actuator inside unit.
• Cover panel to install two-zone kit
detached from comfort module.
Control
• User-friendly controller with large
display, intuitive symbols and two
simple buttons, allowing the user
to select the desired operating
parameter values.
Features
• Eight sizes with nominal heating capacities from 5 to 11.5 kW and nominal
cooling capacities from 4.2 to 9.0 kW.
• Reversible XP Energy air-to-water split system heat pumps with built-in inverter
technology, designed for residential and light commercial applications, offer
excellent energy efficiency values, exceptionally quiet operation and meet the
most stringent operating temperature demands.
• Incorporate the latest technologi al innovations: ozone-friendly refrigerant
c
R-410A, DC inverter twin-rotary compressors, low-noise fan and microprocessor
control.
• Designed for ease-of-installation and service.
• For added flexibility the XP Energy systems are available in heating only or
reversible versions, to suit the demand. Back-up heating with either electrical
(single-energy applications) or gas boiler (dual-energy applications).
• Can be used with a wide choice of Carrier terminal fan coil units - cassettes,
low, medium and high-pressure satellite units, console units, under-ceiling
units and high-wall units.
• Wide operating range in both heating and cooling mode offering high
performance in a wide temperature range.
• DC inverter twin-rotary compressors guarantee enhanced reliability, low energy
consumption and smooth operation under all operating conditions.
• Variable-speed fans with an innovative patented fan blade shape ensure
improved air distribution at exceptionally low noise levels.
• Pre-set or customised selection of the appropriate climate curve for stable
output capacity to match the heat load.
• Output to link and integrate the unit with existing heat sources for dualenergy approach with increased savings and optimum comfort in all conditions.
• Able to control two independent comfort zones with a two-zone kit added to
the main comfort module.
• Leaving water temperature up to 60°C for radiator and domestic hot water
applications, making hot water readily available.
