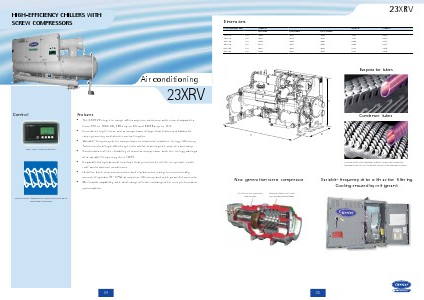

23XRV
Dimensions
Heat exchanger size
30 to 32
35 to 37
40 to 42
45 to 47
50 to 52
55 to 57
Length A
One pass
4350
4870
4496
5017
4521
5042
mm
mm
mm
mm
mm
mm
Width B
Two passes
4172
4693
4347
4867
4382
4902
Three passes
4350
4870
4420
4940
4432
4953
Height C
1930
1930
2045
2045
2127
2127
2200
2200
2299
2299
2305
2305
Evaporator tubes
C
Condenser tubes
B
A
Micro-grooved heat exchanger tubes to ensure optimised heat
exchange between the refrigerant and the heat exchange medium.
New generation screw compressor
Hermetic motor, cooled by
suction gas
Variable-frequency drive with active filtering
Cooling ensured by refrigerant
Reduced length triple rotor
for increased compression
65
