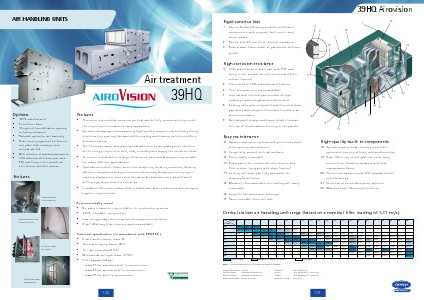

39HQ Airovision
Rigid construction
12
1
2
1 Carrier Holland Heating profiled steel frame
construction with purpose-built corner and
centre posts
2 Panels with 60 mm thick thermal insulation
3 Robust base frame made of galvanised steel box
profile
18
9
7
16
19
60 mm
High corrosion resistance
4 316L stainless steel drain pan with PVC wall
lining in the outside air inlet section and filter
section (option)
5 Filters held in 316L stainless steel frames
6 Anti-corrosion protection available
7 Internal and external panels made of highquality prepainted galvanised sheet steel
8 Cooling coils with integrated stainless steel drain
pan and plastic droplet eliminator housed in an
aluminium frame
9 Special panel design and frame detail eliminate
the risk of condensation forming in the panels
2
17
21
22
15 11
6
20
14 8
3
10
5
4
13
Easy maintenance
High-quality built-in components
10 Various inspection options with generously sized
clear opening access doors
11 Completely smooth internal surfaces
12 Filters easily removable
13 Drain pan in the outside air inlet section and
filter section equipped with drain (option)
14 Cooling coil drain pan fully accessible for
cleaning/disinfection
15 Moisture eliminator after the cooling coil easily
removable
16 Long-life fan and motor bearings
17 Fans removable from the side
18 Special sorption heat recovery wheels for
optimised recovery of heat, cold and humidity
19 High-efficiency centrifugal low-noise fans,
mounted on vibration isolators with low
transmission factor
20 Aluminium dampers with UV-resistant double
nylon bearings
21 Skrim faced sound absorption splitters
22 Matched high-efficiency belt drives
Central station air handling unit range (based on a nominal filter loading of 1.11 m3/s)
Width 4
5
Height
0.56
0.69
2.5
1.11
1.39
4
1.67
2.22
6
8
10
12
14
16
18
20
Preferred range
6
7
8
9
10
11
12
0.83
1.67
2.50
3.33
1.81
2.92
3.89
2.22
3.33
4.44
5.56
2.50
3.75
5.00
6.39
7.50
2.78
4.17
5.56
6.94
8.33
3.06
4.72
6.11
7.64
9.17
3.33
5.00
6.67
8.33
10.00
11.6 p
