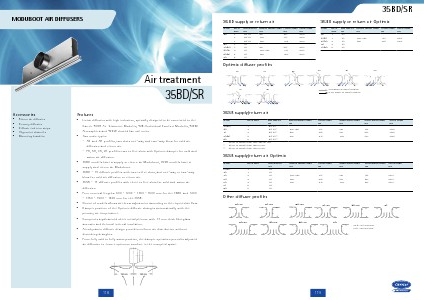

Moduboot Air Diffusers Air treatment 35BD/SR Accessories • • • • • Return air diffusers Dummy diffusers Diffuser end trim strips Alignment channels Mounting brackets Features • Linear diffusers with high induction, specially designed to be connected to the Carrier 42GR Air Treatment Modules, 42BJ Individual Comfort Modules, 42EM Atmosphera and 42DW ducted fan coil units. • Two main types: - AG and AH profiles, two slots one-way and two-way blow for cold air diffusion and return air. - FH, SH, XH, LH profiles: two to five slots with Optimix damper for cold and warm air diffusion. • 35BD models have a supply or return air Moduboot, 35SR models have a supply and return air Moduboot. • 35BD – 19 diffuser profiles with two to five slots, and one-way or two-way blow for cold air diffusion or return air. • 35SR – 17 diffuser profiles with three to five slots for cold and warm air diffusion. • Four nominal lengths: 600 - 1200 – 1350 - 1500 mm for the 35BD and 1200 – 1350 – 1500 – 1800 mm for the 35SR. • Choice of models allows air throw adjustment according to the required air flow. • Damper position of the Optimix diffuser changes automatically with the primary air temperature. • Comprises a galvanized sheet metal plenum with 13 mm thick fibreglass acoustic and thermal internal insulation. • Aerodynamic diffuser design provides uniform air distribution without disturbing draughts. • From fully cold to fully warm position, the damper operation provides adjusted air diffusion to ensure optimum comfort in the occupied space. 118
