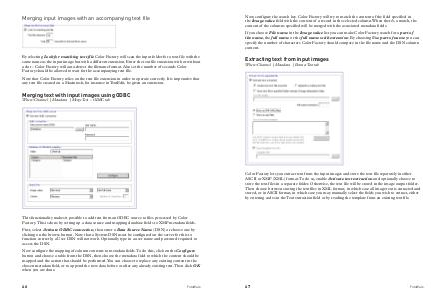

Test Drive 160922 Eka Harkka | Page 47

Now, configure the search key. Color Factory will try to match the content of the field specified in the Image value field with the content of a record in the selected column. When there’s a match, the content of the columns specified will be merged with the associated metadata fields. If you choose File name in the Image value list you can make Color Factory search for a part of the name, the full name or the full name with extension. By choosing Use part of name you can specify the number of characters Color Factory should compare in the file name and the DSN column content. Extracting text from input images Where: Channel | Metadata | Extract Text tab Color Factory lets you extract text from the input images and store the text file separately in either ASCII or XMP (XML) format. To do so, enable Activate text extraction and optionally choose to store the text files in a separate folder. Otherwise, the text file will be stored in the image output folder. Then choose between storing the text files in XML format, in which case all image text is extracted and stored, or in ASCII format, in which case you may manually select the fields you wish to extract, either by entering codes in the Text extraction field or by reading the template from an existing text file. 47 FotoWare
