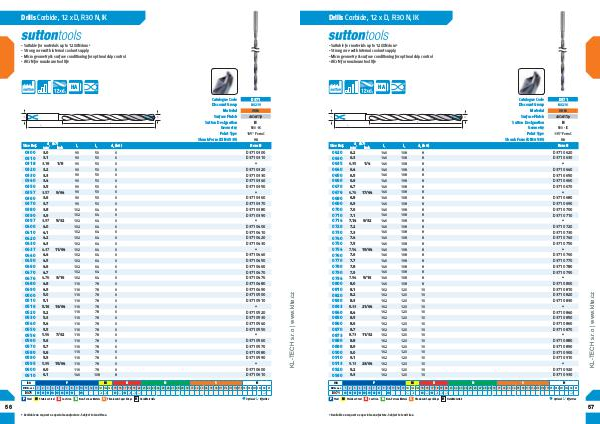

SUTTON - katalog | KL-TECH s.r.o. | www.klte.cz SUTTON_katalog | Page 36

Drills Carbide, 12 x D, R30 N, IK
- Suitable for materials up to 1200N/mm 2
- Strong core with internal coolant supply
- Micro geometry & surface conditioning for optimal chip control
- AlCrN for maximum tool life
